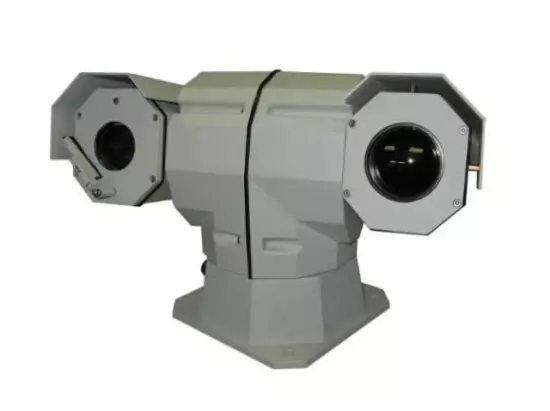

Vehicle Mounting PTZ Thermal Visible Camera System

Model NO. SHR-HLV330SIR5 Sensor CMOS HDMI Format 1080P Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Remote Control With Remote Control Name Dual-Sensor Thermal Night Vision Camera IR Resolution 384*288 IR Lens Focal 50mm Visible Camera 2.1MP, F=4.5~135mm,30X Optical Zoom Visible Camera Distance 1000m Thermal Distance 1200m for People,3300m for Car Pan Tilt Speed Pan 50 Degree/S,Tilt 50 Degree/S Protection Class IP66 Interface RJ45,DC12V Weight 7.5kg Transport Package Standard Export Carton Trademark CZVZ Origin China Production Capacity 1000 PCS/Month

Product Description

Dual-sensor IP thermal Imaging Camera for ship/vehicle security Features: *IP thermal camera,day&night HD visible camera,pan/tilt *Visible camera can detect 1000m at day,Thermal camera can detect 1200m people,3300m car *Low lux HD camera with 2.1MP,30x optical zoom,4.5~135mm lens *High intelligence, simple to operate, easy to use and maintain *3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability *Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating Effect: Monitoring distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3×2.3)Detection distance1200m3300mRecognition distance600m820mIdentification distance150m400mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30F/SImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(α-si)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV11.0°×8.2°Frame rate25HzLens controlElectric focusing(auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation,pitching -90°~+90°speedHorizontal 0°~50°/s,pitching 0°~50°/sPreset bitsMax 128Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCRelative humidity10%~90%Anti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesProtection gradeIP66Power supplyWhole machine power supplyDC12V,appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight7.5kgInstallation methodOutdoor pedestal mounting Drawing:
