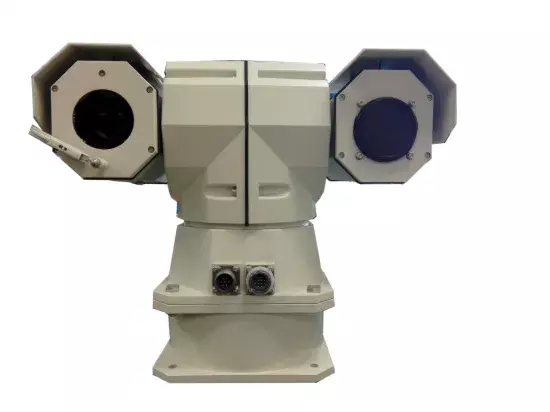

Small PTZ Thermal Visible Camera System for Surveillance

Model NO. SHR-HVLV330HTR50 Sensor CCD HDMI Format 576I Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, Vandal-proof Effective Distance About 1000 Meters Sensor Size 1/4 inch Remote Control With Remote Control Thermal Detection Distance 480m for Human, 1320m for Vehicle Thermal Recognition Distance 120m for Human, 330m for Vehicle Day Light Camera Distance 1000m Thermal Lens 50mm Thermal Detector 640X512 Uncooled Vox Thermal Camera Frame Rate 25Hz Daylight Camera Lens 4.3~129mm,30X Optical Zoom Presets 128 Protection Degree IP66 Weight 7.5kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 500 Units / Month

Packaging & Delivery

Package Size 26.50cm * 53.00cm * 31.50cm Package Gross Weight 28.000kg

Product Description

Product Description SHR-HLV330HTIR50 Dual-sensor PTZ Network Thermal & Day Camera SystemSee through the fog, smoke, dust and other hazardousatmospheres in total darkness   Product Parameters SHR-HLV330HTIR50 double spectrum night vision camera combines thermal imager, visible camera and pan-tilt together, has a network cable for two Thermal & visibe video output, 360°horizontal rotate, PTZ design, can realize 24hrs monitoring.This product has two operation mode, day mode and night mode. In day mode, it uses CCTV camera to image; while under night mode, it uses thermal camera to image. Running smoothly and long life time, easy to operate and install.This product can be widely used in many occasions at night, harsh environment, long distance, large scope and hidden monitoring.Thermal Imager:Sensor         640*512,25HZ uncooled FPA Vox detectorThermal lens    50mm/F1.0 Wave length      8~14μmNETD            ≤[email protected],300KImage processing   AGC,DDEDigital zoom        1x/2x/4xScene mode        Hot white, hot black and other pseudo colorsDay/Night CCD Camera:Sensor  1/2.8" Progressive Scan CMOS,IP HD camera           Valid pixels       1920*1080p,2.1MPZoom           30x optical zoomFocal length      4.5~135mm  FOV             2.34°~65.1°Min illumination    Color: 0.05Lux @ (F1.6,AGC ON) W/B: 0.01Lux @ (F1.6,AGC ON)Zoom method     Auto/manualDigital zoom      12xPan/tilt:Rotating Speed      Tilt 0°~120°/s, Pan 0°~90°/sAngle Range        Pan 360°Continuous; Tilt +90° to -90°; Presets            128Accuracy          ±0.1°Scan and cruising function     SupportCruise function      2 pathsSerial Control Interface   RS485(Pelco D),GNDEthernet Interface    1x10M/100M,Ethernet RJ45 for visible camera and Thermal ImagerProtection Class         IP66Power input            AC24VPower adapter         AC220V~AC24V,power supply adapter with the camera togetherEnvironmentalOperation Temperature       -40ºC~+ 65 ºCStorage Temperature         -50ºC~+ 85 ºCProtect Grade                 IP66System weight                 9kgRelative humidity              10%~90%Anti-salt fog     continuous spraying for 48 hours at PH 6.5-7.2,surface with no changesRange Performances for Thermal camera 640*512 pixel detector with 50mm fixed lens Packaging & Shipping
