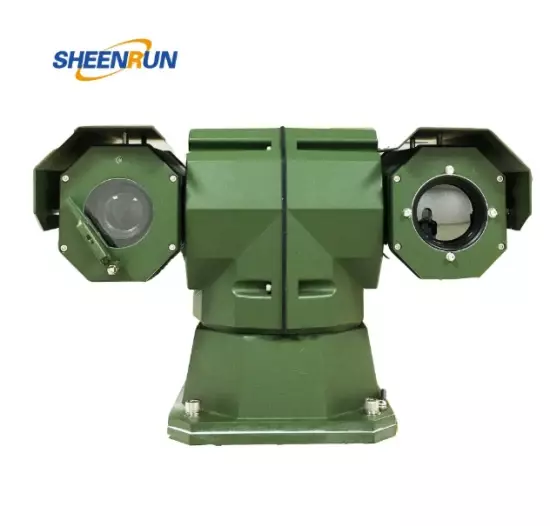

Sheenrun Dual Video Infrared Cameras (SHR-VLV330SIR2)

Model NO. SHR-VLV330SIR2 Sensor CCD HDMI Format 576I Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, Vandal-proof Effective Distance About 1000 Meters Sensor Size 1/4 inch Remote Control With Remote Control Thermal Detection Distance 480m for Human, 1320m for Vehicle Thermal Recognition Distance 120m for Human, 330m for Vehicle Day Light Camera Distance 1000m Thermal Lens 50mm Thermal Detector 384X288 Uncooled a-Si Thermal Camera Frame Rate 25Hz Daylight Camera Lens 3.4-122.4mm, 36X Optical Zoom Presets 128 Protection Degree IP66 Weight 7.5kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Features   - Double-spectrum design: Combine infrared, visible light imaging together,   has the function of intelligence high speed pan-tilt and infrared thermal imaging. - No blind spot: No blind spot; 0°~80°/s; shifting function; pan rotate 360°; tilt    rotate +90°~-90° -  Intelligence: 128 pre-setting bits, 6 tracking path, 30S self-check, keep watching     function; 2400-19200 Baud Rate PELCO D,P protocol; OSD menu function;  - Double video output: Double video output. 10 pseudo colors of infrared images;    2 black & white format; can penetrate rain, fog and snow; - Electronic scanning: Easy to lock the target - Other special functions: Pre-setting bits, scanning, automatic cruising,    keep watching 2 Technical Indicators   Effect DistanceTargetHuman  (1.8mx0.5m)Vehicle (2.3mx2.3m)Thermal camera detection distance480m1320mThermal camera recognition distance120m330mDay light camera1000mDay Light CameraSensor1/4" EXview HAD CCDPixel440000TVL530TVL (color), 570TVL (black and white)Focal length3.4-122.4mm, 36x optical zoomFOV1.7°-57.8°Thermal CameraDetector Uncooled microbolometer focal plane array(a-si)Resolution384x288Spectrum range8-14μmNETD≤[email protected],300KFocal length20mmFOV27.0° x 20.4°Image processingDDE, pseudo colorsFrame rate25HzPan-tiltAnglePan 360°, tilt -90° to +90°SpeedPan 0°-50°/s, tilt 0°-50°/sPreset128Cruising6 paths, each path can set 20 presetsAnti-thunderTVS 6000VInterfacePower supplyDC12VOther interfacesRS485, 2xBNC video outputEnvironmental IndicatorsWorking temperature-25ºC to +55ºCStorage temperature-40ºC to +65ºCProtection degreeIP66PowerPower supplyAC220V-DC12V/3A waterproof powerPower consumption≤30WOthersWeight7.5kg   3 Product Photo 4 Company Photos  5 FAQ

(1)  Is your company a manufacturer?      Yes. China CZVZ manufactures thermal camera, laser camera and multi-    sensor camera since 2004.

(2) What is the price?

      Please kindly send me the specificatons or application details and then we will  send you suitable camera's demo video, specifications and price.

(3) What is your warranty?

   We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized products?

   Yes.

(5) Does your company accept OEM?

   Yes.
