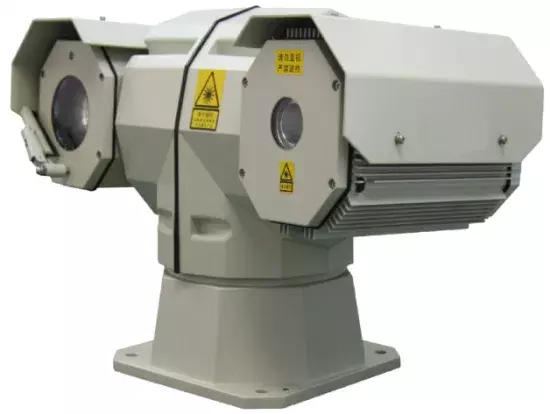

Outdoor Vlv350 Laser PTZ Night Vision Camera

Model NO. SHR-VLV350 Sensor CCD HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, Vandal-proof Effective Distance 300m Night Vision, 600m Day Vision Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision 300 Meters Day Vision 600 Meters Pixel About 440000 Pixel Focal Length 4.1-73.8mm, 18X Optical Zoom Laser Wavelength 810nm Laser Illuminator Power 5W Presets 128 Presets Protection Degree IP66 Power Supply DC24V Dimensions 374mm X 218mm X 243mm Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Featutes   (1) 300 meters night vision and 600meters day vision  (2)  With auto day/ night switch, this camera can monitor 24/7. (3)  Visible light camera lens: 4.1-73.8mm, 18x optical zoom  (4)   810nm laser wavelength, 5W laser power  (5)   128 presets  (6)  IP66 (7)  Five years life on average    2  Specifications    Maximum monitoring distance300m at night, 600m in the daytimeDay light cameraPixelAbout 440000 pixelsTVL540 TVL(color), 570 TVL(black and white)Focal length4.1-73.8mm,18x optical zoomAperture valueF1.4-3.0Horizontal field view2.8°-48°Laser illuminatorWavelength810nmPower5WIlluminating angle2°-50° synchronous continuous adjustmentPan-tiltSpeedPan speed 0-80°/s, tilt speed 0-60°/sAnglePan 360°, tilt +90° to -90°Presets128Cruising paths6 cruising paths, each path can set 20 presetsOther featues40s self-checking, with power-off memory functionInterfacePower supply interfaceDC24VOther interfacesRS485, BNC video outputEnvironmental indicatorsOperating temperature-25ºC to +55ºC ( -40ºC to +55ºC can be customized)Storage temperature-40ºC to +65ºCInternational protectionIP 65Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 free drop test methodAnti-thunder2000VPowerPower supplyAC24V±10% / 3APower consumption45WPhysical featuresWeight7.5kgDimensions 374 * 218 * 243mm   3  Application This camera is widely used for safe city project, mining surveillance, police car patrol, perimeter surveillance and other outdoor surveillance.  4  Our Service

(1)  We generally offer one year warranty. Extended warranty is also available.

(2)  Life-long technical support. Professional technical team and salesperson help  you with troubleshooting procedures via Internet and Phone any time when needed.

(3) Door-to-door service if necessary. (4) We accept OEM. (5) Color can be customized. 5  Company Introduction

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading  night vision equipment and rugged information equipment supplier, as well as a relying  construction company of Shandong Province Academician Workstation and Night

Vision Surveillance Engineering Technology Research Center. CZVZ adheres to

 independent innovation, developed the world's first laser night vision camera and the

first uncooled continuous zoom infrared thermal imaging camera with independent

intellectual property rights, its synchronous zoom laser night vision technology and

continuous zoom thermal imaging technology have reached international advanced

standard level, possess the world's largest market share in laser night vision market.
