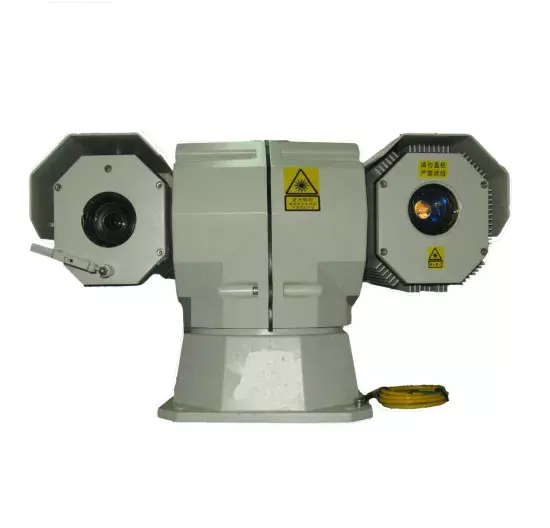

Outdoor HD IP Night Vision Infrared Laser IR PTZ Camera

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080P Horizontal Resolution 650tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, IP Network Control Effective Distance 500m Night Vision, 1000m Day Vision Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 500 Meters Day Vision Distance 1000 Meters Pixel 2.1MP Focal Length 4.5-135mm, 30X Optical Zoom Laser Wavelength 810nm Laser Illuminator Power 5W Video Coding Format H.264/H.265 Presets 256 Presets Protection Degree IP66 Power Supply DC24V Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Featutes   (1) 500 meters night vision and 1000meters day vision  (2)  With auto day/ night switch, this camera can monitor 24/7. (3)  2.1MP HD (4)  IP control (5)  H.264 / H.265 (6)  IP66 (7)  Five years life on average    2  Specifications    Monitoring distanceNight vision 500m  Day vision 1000mDay light cameraSensor1 / 2.8" progressive scan CMOSPixel2.1MPFocal length4.5-135mm, 30x optical zoomAperture valueF1.6-4.4Camera controlAGC, AWB, Automatic Backlight Compensation, Supports manual and automatic day and night mode switchingMinimum illumination0.05Lux(color), 0.01Lux(black and white)Video codingFormatH.264 / H.265Video resolution1920 x1080Bitrate and frame rateBitrate: 64Kbps-4Mbps, frame rate: 1-25fps(50Hz), 1-30fps(60Hz)Laser illuminator Power5WWavelength810nmIlluminating angle0.7°-50° synchronous continuous adjustmentEven lightMCIC even light technologyPan-tilt SpeedPan speed 0-80°/s, tilt speed 0-60°/sAnglePan 360°, tilt +90° to -90°Presets256Cruising paths6 cruising pathsInterfacePower supply interfaceDC24V socket, for external power adapterInternet  interface1 x 10Base-T / 100Base-TX, RJ45 interfaceEnvironmental indicatorsWorking temperature-25ºC to +55ºC (optional -40ºC to +55ºC )Storage temperature-40ºC to +65ºCProtection degreeIP 66Shakeproof10-55Hz, 2m/S2, 0.75mm;Anti-impact150m/S2, 11msAnti-salt fog48 hours spraying continuously under PH 6.5-7.2PowerPower supplyDC24V, please use the enclosed power equipmentPower consumption60WPhysical featuresWeight8kgDimensions 240mm * 374mm * 243mm  3  Application This camera is widely used for safe city project, mining surveillance, police car patrol, perimeter surveillance and other outdoor surveillance.  4    300meters Night Vision Demo Photo  5  Our Service

(1)  We generally offer one year warranty. Extended warranty is also available.

(2)  Life-long technical support. Professional technical team and salesperson help  you with troubleshooting procedures via Internet and Phone any time when needed.

(3) Door-to-door service if necessary. (4) We accept OEM. (5) Color can be customized. 6  Company Introduction

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading  night vision equipment and rugged information equipment supplier, as well as a relying  construction company of Shandong Province Academician Workstation and Night

Vision Surveillance Engineering Technology Research Center. CZVZ adheres to

 independent innovation, developed the world's first laser night vision camera and the

first uncooled continuous zoom infrared thermal imaging camera with independent

intellectual property rights, its synchronous zoom laser night vision technology and

continuous zoom thermal imaging technology have reached international advanced

standard level, possess the world's largest market share in laser night vision market.
