New Design Multi-Core 16 Core FTTH Fiber Optic Drop Cable for Outdoor

Model NO. GJYXCH Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Single Core Certification RoHS, CE, ISO9001 Brand OEM Sheath Material LSZH Style Fig 8 Color Black or Other Product Name New Design Multi-Core 16 Core FTTH Fiber Optic Dro Multi Core 2, 4, 6,8,10,12,16 Fiber Type Sm G657A1, G657A2 Length 1km/Roll or 2km/Roll Transport Package Wooden Drum Specification 16 Cores Trademark OEM Origin Shenzhen, China HS Code 8544700000 Production Capacity 50000m/Day

Product Description

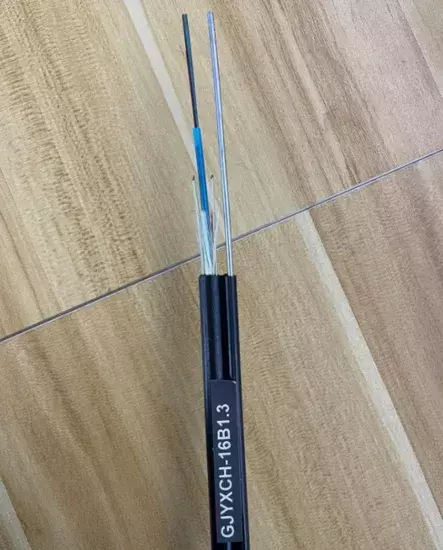

New Design Multi-core 16 core FTTH Fiber Optic Drop Cable for outdoor    Product DescriptionGJYXCH Fiber optic cableDescription:The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.Characteristics1,Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.2,Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.3,Single steel wire as the additional strength member ensure good performance of tensile strength.4,Simple structure, light weight and high practicability.5,Novel flute design. easily strip and splice, simplify the installation and maintenance.6,Low smoke, zero halogen and flame retardant sheath.   Technical ParameterItemTechnology parameterCable typeDrop CableCable Count1  2  4  6  8  10 12 16Fiber colorBlue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, AquaFiber type9/125 (G657A2)Sheath colorBlack and whiteSheath materialLSZHCable dimension (mm)3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)Cable weight (Kg/km)20Min. bending radius (mm)10 (Static) 25 (Static) 30 (Static) 60 (Static)Attenuation (dB/km)0.4 at 1310nm, 0.3 at 1550nmShort term tensile ( N)200; 600Crush resistance (N/100mm)1000; 2200Operation temperature (ºC)-20~+70   Characteristics*Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.*Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber.*Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.*Simple structure, light weight and high practicability.*Novel flute design, easily strip and splice, simplify the installation and maintenance.*Low smoke, zero halogen and flame retardant sheath.
