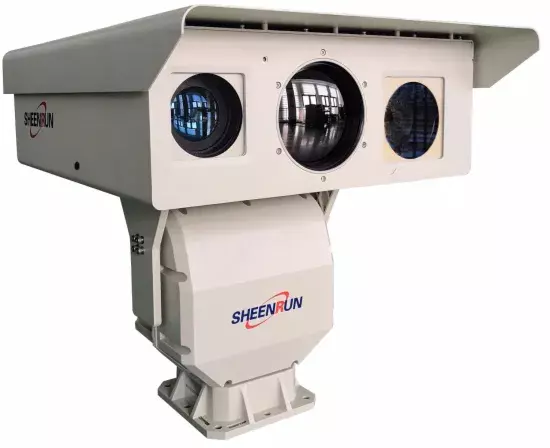

Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance

Model NO. SHR-WHLV3020TIR185R Sensor CMOS Kind Electric Focusing Lens or Auto Focusing Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC, Multi Sensor Effective Distance Thermal Distance 10km Remote Control With Remote Control Name Three-Sensor Thermal Imaging Camera System Protection Grade IP66 Thermal Detect Distance for Human 3600m Thermal Detect Distance for Vehicle 9900m Night Vision 3km Day Vision 5km Pan/Tilt PTZ Heavy-Duty Specification CE, FCC Trademark SHEENRUN/OEM Origin China Production Capacity 1000

Product Description

Long Range Multi-sensor PTZ  Thermal Camera System   Operating distanceVisible lightNight vision3000mDay vision5000mThermal imagingObjecthuman (1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance4320m11880mRecognition distance1080m2970mIdentification distance540m1440m Visible Lens Focal lens12.5~750mmFOV0.5°~28.7°Double lenssupporting(optional)Auto focusingsupporting(optional)Fog penetrationsupporting(optional)Visible CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25f/s(50Hz),1~30f/s(60Hz)Laser IlluminatorIlluminating lens60* zooming laser telephoto lensPower20WWave length810nmIlluminating angle0.3°~18°continuous changeLight  homogenizationMCIC multi-tube core fusion mixed mode light homogenization technologyInfrared lensFocal length36~180mmFOV2.5°×2.0°~12.7°×10.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)Thermal CameraDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching: -60°~+20°speedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bits255Cruising8 paths,10 bits each pathAnti-lightning2000VinterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS422 communication,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/8A water proof power supplyWhole machine power consumption≤170WPhysical featuresWhole machine weight45kgInstallation methodOutdoor pedestal mounting
