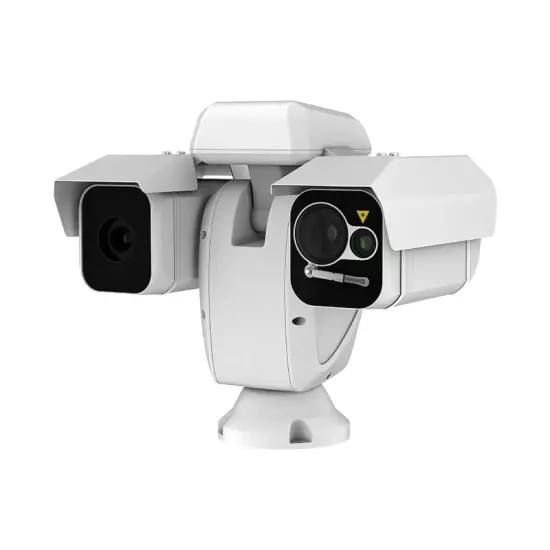

Long Range High Accuracy Military Network PTZ Camera Electro-Optical Surveillance

Model NO. DA-ZX Sensor CMOS HDMI Format Customization Horizontal Resolution Customization Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance Customization Sensor Size Customization Remote Control Customization Transport Package Box Specification Customization Trademark DA Origin China Production Capacity 5000 Piece/Month

Product Description

Product Description



Application



Product Parameters   Thermal ImagingSensor typeVanadium Oxide Uncooled Detector   Response band8~14 μm   NETD (Noise Equivalent Temperature Difference)<50 mk (@25 °C,F#=1.0)   Maximum image size640 × 512   Reference sizePeople: 1.8 m x 0.5 mvehicle: 1.4 m x 4.0 m,Fire source: 2 m × 2 m,Boat:10 m × 5 m   Thermal imaging lens focal length23~230 mm,Support auto focus(The following parameters are based on the longest focal length of 230 mm..)   MARD (spatial resolution)0.09   maximum aperture value1.2   Detection distance (vehicle) (Johnson's law)20746 m   Detection distance (person) (Johnson's law)6764 m   Recognition distance (vehicle) (Johnson's law)5175 m   Recognition distance (people) (Johnson's Law)1690 m   Recognition distance (vehicle) (Johnson's Law)2592 m   Identifying Distance (People) (Johnson's Law)846 m Company Profile
