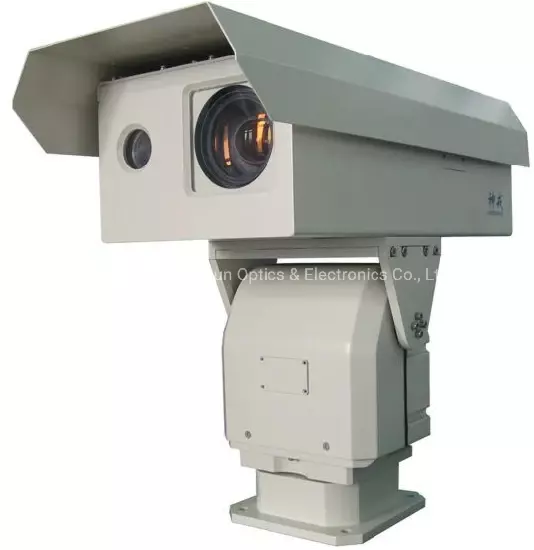

Long Range 5km CCTV HD IP Camera

Model NO. N-HLV3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 11880m Sensor Size 1/3 inch Remote Control With Remote Control Pan-Tilt Auto Cruising and Scan Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

13 years on long range thermal imaging & laser camera  CZVZ would like to provide customization service for your special requirement.   Product Features Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance Infrared detector with high temp sensitivity, with min temp resolution of 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Specification Detection distanceVisible light5000mThermal imagingobjecthuman(1.8m×0.5m)vehicle(2.3m×2.3m)Detection distance4320m11880mRecognition distance1080m2970mIdentification distance540m1440mHigh definition lensFocal length12.5~750mmFOV0.5°~28.7°Double lenssupporting(optional)Fog penetrationsupporting(optional)Auto focusingsupporting(optional)Camera Sensor type1/2''Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)Infrared lensFocal length36~180mmFOV2.5°×2.0°~12.7°×10.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing, auto focusing(optional)Spatial resolution0.69~0.14mradDetectorDetector typeuncooled microbolometer focal plane array(VOX)Effective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching -60°~+20°speedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bit255Auto cruising8 paths, 10 bits each pathAuto scan1 pathAnti-lightning2000VinterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Video controlling interfaceRS422communication, BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤120WPhysical featuresInstallation methodOutdoor pedestal mounting
