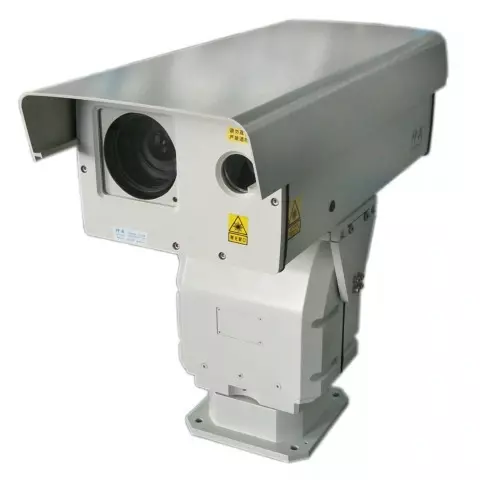

Long Distance Outdoor Laser PTZ Camera (HLV1020)

Model NO. SHR-HLV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, IP Effective Distance 1km at Night, 2km in The Day Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 1km Daytime Vision Distance 2km Pixel 2.1 Mega Pixel Focal Length 15-300mm Coding Format H.264/MPEG4/Mjpeg Laser Wavelength 810nm Laser Power 8W IP Control or Not IP Control Power Supply DC24V Protection Degree IP66 Transport Package Carton / Wooden Case Specification 25kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1  Features         (1) 1km night vision and 2km day vision     (2) With auto day / night switch, the camera can monitor 24 /7.     (3) Auto focus     (4) Support fog penetrating, backlight compensation and WDR     (5) 3D positioning function      Monitoring DistanceNight Vision1kmDay Vision2kmImaging Lens Focal Length15-300mmFOV0.5°-17.8°Focus Mode Auto focus Fog PenetratingOptionalVisible Light Camera Sensor1 /2.8" progressive scan CMOSPixel2.1MPVideo FormatH.264 / MPEG4 / MJPEGVideo Resolution1080P, CIF, supports three data ratesBitrate32Kbps-16MbpsFrame Rate1-25fps (50Hz), 1-30fps (60Hz)Laser Illuminator Illuminating Lens60 times zoom laser telephoto lensPower8WWavelength810nmIlluminating Angle0.5°-30° continuous adjustmentEven LightMCIC even light technologyPan-tilt Load Capacity22kg (top mount)SpeedPan speed 0.1° -9°/s, tilt speed 0.1° -4°/sAnglePan 360°, tilt -60° to +20°Presets255 presets, support lens focus zoom memoryCruising Paths8 cruising paths, each path can set 10 presetsInterfacePower SupplyDC24VInternet Interface1 x 10Base-T / 100Base-TX, RJ45 interfaceEnvironmental IndicatorsOperation Temperature-25ºC to +55ºC Storage Temperature-40ºC to +65ºCProtection GradeIP 66Power Power SupplyDC 24V±5% /2.5A, waterproof AC110V/220V - DC24V power adapterPower Consumption≤80W   3 Product Photo
