Locking Mount Long Range Thermal Imaging Scopes Monocular 640X512 Sight

Model NO. DA-T Series Style Handheld Structure Monocular Kind Thermal Imaging Night Vision Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Detector Type Un-Cooled Vanadium Oxide Working Band 8-14um Resolution(Optional) 384*288/640*512(12um) Mrtd 550mk Monitor Type OLED Display Resolution 1024*768 Laser Rangefinder 1.3km WiFi Yes Waterproof IP67 Eyepiece Magnification 14X Battery Type 18650*2 Working Time 8 Hours Weight 1.2kg Impact Resistance 1200g Dimensions Size 255*116*102mm Transport Package Safety Box Packing Specification 255*116*102 Trademark DA Origin China HS Code 9005809000 Production Capacity 1000PCS

Product Description



Product Description

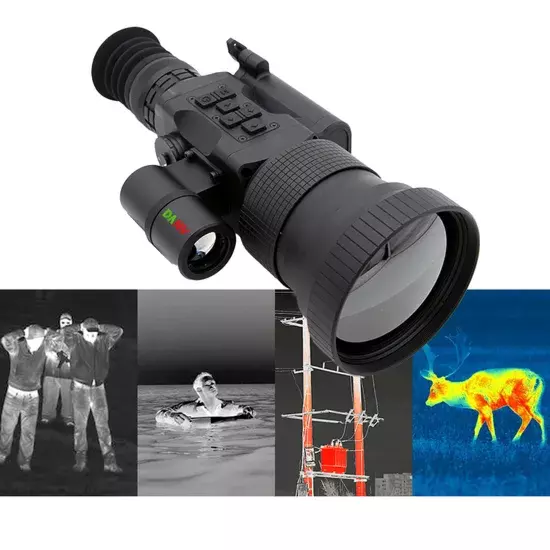

  DA-T series thermal monocular scope is a lightweight, small-volume, low-power multifunctional searching thermal monocular scope. It has the 1.3km laser rangefinder and WIFI function. Using a 12μm vanadium oxide detector and advanced non-blocking film technology.DA-T series thermal monocular scope has the characteristics of high sensitivity, high refresh rate, and high stability. It can perform full-scene imaging and observation 24 hours a day.

Product features 1.  384*288px@12um or 640*512px@12um high resolution un-cooled infrared detector; 2.  35mm, 50mm, 75mm objective lens specification(optional) ; 3.  1.3 kilometers laser rangefinder(optional); 4.  1x, 2x, 4x digital zoom ; 5.  IP67 waterproof and dustproof; 6.  Supporting a variety of reticle displays; 7.  1200G strong impact resistance; 8.  8 hours continuous working time, low power consumption design; 9.  Wi-Fi image transmission, photo and video functions.



Product Parameters

DA-T series Thermal Monocular ScopeDetector typeUn-cooled vanadium oxideWorking band8~14μmResolution(optional)384×288 & 640×512(12μm)MRTD(1f0)550mKMonitor typeOLEDDisplay resolution1024×768Laser rangefinder(optional)1.3kmWIFIYesObjective focal length35mm, 50mm, 75mmF1.0WaterproofIP67FOV5.9x4.79Focusing distance10m-InfinityRecognition distance1.5km(Standing people)Eyepiece magnification14XEyepiece diopter adjustment±5DCross cursor reticle style5Image modeWhite thermal, Black thermal, Red thermal, False color, StrokeElectronic zoom1x/2×/4×Battery type18650×2External video outputPAL analog videoContinuous working time28 hoursOperating temperature-40ºC~+55ºCWeight≤1.2kgDimensions size255×116mmx102mmImpact resistance1200G

Company Profile

  Shaanxi CZVZ Protective Technology Co., Ltd.is a leading manufacturer and developer        As a professional and trustable manufacturer, our advanced equipment!professsional research& D team and hardwroking workersprovide you best solution in Gen2+/Gen3 Night Vision Devices, Thermal Imaging Devices, warmest welcome you visit our factory.      Welcome to Join us on a journey where R&D ,innovation, precision, and reliability converge to redefine what is possible in nighttime vision.   Professional Manufacturer IRD is! Professional R&D design engineer team and advanced equipment!   3500+ square meter workshop Professional Engineers and workers 2000 pcs production capacity 300+ workers Quality Guaranteed   Warmest welcome you visit our factory and have face-to-face explore firsthand the features and capabilities of our diverse range of products, from night vision thermal imaging devices to precision measurement instruments! Participate in International Exhibitions   We go abroad to attend International Exhibitions every year!   Looking forward to meeting you at the exhibition!



In October 2024, CZVZ have attend the SAHA EXPO 2024 International Defence & Aerospace Exhibition in Türkiye.At the booth 3A-30, CZVZ's night vision devices have become the focus of many visitors with their high definition, long-distance detection ability, and excellent stability. Whether in complex night environments or in challenging tasks, these night vision devices can provide reliable visual support for usersWelcome to visit the IREEDA EXHIBITION(3A-30)!!!



FAQ



Q: Are you manufacturer or trader?

A: CZVZ is a professional manufacturer of night vision, thermal vision and other photoelectric products.   Q: What products can you provide? A: We can provide high-quality night vision products, infrared thermal imaging devices, Gen2+/Gen3 image intensifier tubes, infrared detectors, other optoelectronic products and core accessories, as your requirement. Q:What is the lead time of your products? A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.     Q:What is the shipping method? A: Usually shipped by Express delivery (DHL, EMS, UPS, FEDEX, etc.) is adopted. Please contact us if you have any requirements.   Q:Do you accept OEM or ODM? A: Yes, our factory definitely provide OEM or ODM service, it depends on the quantity.   Q: How can I placeorder? A: You can contact us by send inquiry about your order details, or place order online.   Q: How long is the warranty? A: Most of our products provide the one year warranty.
