Lightweight and Compact Design Multifunction 6.5km Waterproof Laser Rangefinder

Model NO. DA-PLRF96 small laser rangefinders Sensor Laser Wavelength 1535um Eye Safe Fov 6 Degrees/106mil Divergence 0.4 Mrad Min Range 30m Accuracy 1m Waterproof IP67 Application Hunting, Rescue, Military, Police Transport Package Military Safety Box Specification 124x76x49mm Trademark CZVZ Laser Range Finder Origin Shaanxi HS Code 9005809000 Production Capacity 100PCS/Month

Product Description

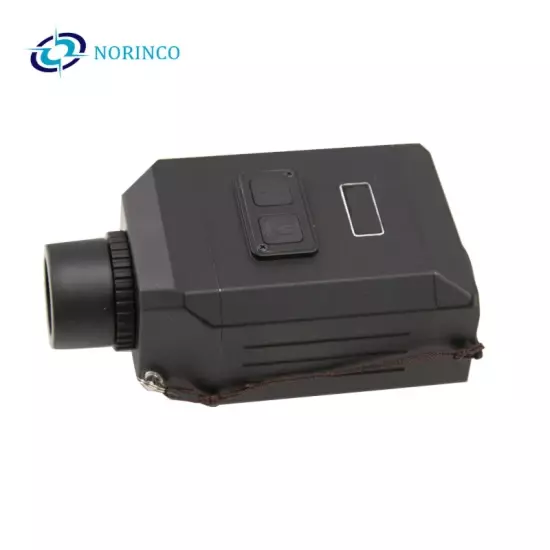

Lightweight and compact design multifunction 6.5km waterproof laser rangefinder

Product Description

CZVZ Military long range tactical handheld monocular 9km IP67 pocket night vision laser rangefinder is the military standard equipment in the army. Military product, high performance, strong environment adaptability. The main functions of this mini laser rangefinder includes: ranging, ranging the distance between two target. angle measurement, real-time display of measurement data in the eyepiece, power display, data transmission and other functions. It is mainly used for single-hand holding and equipped with tripod for long distance target.

Besides, it is small size, light weight and fitting easily into pocket. It can be used in military operations, military operations anti-terrorism, geological surveying, emergency work, sea-route, meteorology, etc



  Features

Applications



Product Parameters Magnification7×Field of view6°/106milExit-pupil distance20mmDiopter-4~+4DLaser type1535nmMax range≥9Km(For big buildings),NATO target(2.3×2.3m)≥6KmMin range30mAccuracy±1mAngle rangeAzimuth:0~360°;Inclination:±90°Divergence0.4mradDetection≥98%Ranging frequency1HzPower supplyDC 6VConnectorUart(TTL_3.3V)Number of repeated measurements(battery powered)5000 timesBattery typeCR123A×2Dimensions (L×W×H)124×76×49mmWeight(incl. batteries)460gOperation temperature-40~+55ºCStorage temperature-50~+65ºCIP ratingIP67 Packaging & Shipping



Military Laser Rangefinder is packed in safety box, we guarantee the military range finder not damaged during the dlivery.



Company Profile

CZVZ technology researches, designs, develops, manufactures Portable military long-range  laser  binocular anti-sniper detector system telescope Technologies that enhance perception and awareness. we bring innovative sensing solutions into daily life through thermal imaging systems, visible-light imaging systems.
