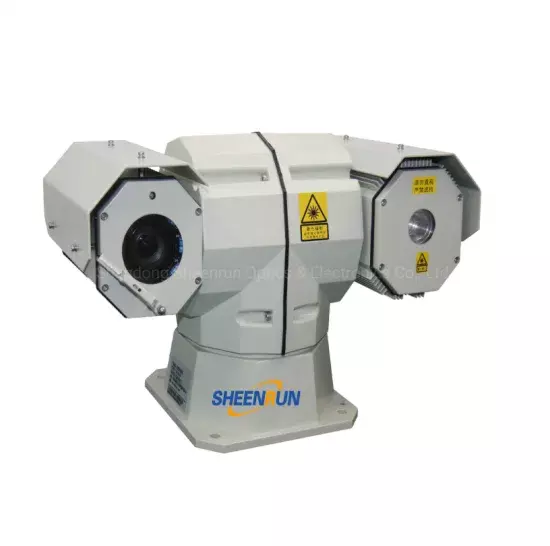

Infrared 800m 1km HD Laser Day Night Vision IP Camera

Model NO. HLV535 Sensor CMOS HDMI Format 1080I Horizontal Resolution 420tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 400 M Sensor Size 1/3 inch Remote Control With Remote Control Night Vision 800 M Day Vision 1000 M Focal Length 4.3-129mm F Value 1.6-4.4 Encode Format H.265/H.264/Mjpeg Power 5W Pan Tilt Rotation Horizontal: 360 Degree, Tilting:-90~90 Degree Preset 256 Specification 240mm× 374mm× 243mm Trademark CZVZ Origin China Production Capacity 100 Units / Month

Packaging & Delivery

Package Size 540.00cm * 500.00cm * 360.00cm Package Gross Weight 11.000kg

Product Description

                                                   HLV420 HD Integrated Night Vision Camera  Product Features:   Adopting near-infrared light source to fill light, good concealment, not easy to be detected Specialized high definition night vision laser homogenization technology, laser spot high brightness and good homogenization of laser spot, exquisite image with no noise  20* day and night low light 2 megapixels color to black camera, realizing day and night continuous monitoring Super large angle continuous servo synchronous zooming laser illuminator, MMA inside optical axis fine adjustment aligned technology High performance embedded processor, adopting high efficiency H264 compression algorithm, clear, real time and smooth video Supporting dual stream, small time delay, fully satisfying different network bandwidth Fully supporting ONVIF,GB/T28181, providing SDK, can docking with main monitoring platform home and abroad Supporting WEB browsing video, providing access to NVR platform to conduct uniform parameter configuration and operation state management Humanized design, high intelligence, supporting 3D locating, power off memory, zooming and speed changing Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supply mode such as solar energy IP66 protection grade,2000V anti-lightning, adapting to all kinds of complex environment Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Specifications: Monitoring distanceNight vision800metersDay vision1000metersCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.7~94mm,20* optical zoomingLens apertureF1.6~3.5Min illumination0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentVideoing controlAuto gain control, auto white balance, auto backlightcompensation,supporting manual and auto day and night mode switchVideo coding     Coding modeH.264Video resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlayStation logo, date, timeImage adjustmentBrightness, contrast ratio, saturationProtocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,)IlluminatorPower5wWave length810nmIlluminating angle1°~20°,synchronous servo continuous adjustmentLaser homogenizationMCIC homogenization technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°speedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitsMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket, for external power supply adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input, 1switch outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtection gradeIP66Anti-vibration10~55Hz,2m/s2,0.75mmAnti-impact150m/s2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2, surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use appendant power supplyDevice power consumption≤60WPhysical featuresSize240mm×374mm×243mmWeight8KgOthersApplication functionreal-time clock, supporting manually capturing image and manually videoingConfiguration and maintenanceSupporting configuration management and video browsing through WEB browser, providing access to NVR platform to conduct uniform parameter configuration and operating state management, supporting ONVIF2.0,GB28181
