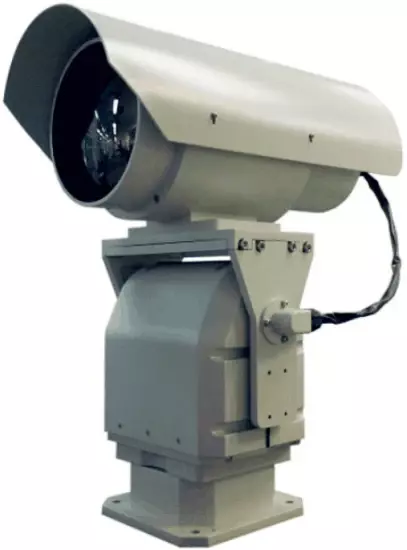

Human Detection Thermal Imaging Surveillance Camera

Model NO. SHR-TIR30R Sensor Vox HDMI Format PAL/NTSC Video Output Horizontal Resolution 324X 256 Resolution Kind Auto / Manual Certification CE, FCC Feature Waterproof / Weatherproof Effective Distance 720m Human Detection Sensor Size Same as Lens Sizse Remote Control With Remote Control Detection Distance 720m for Human, 1980m for Vehicle Recognition Distance 180m for Human, 490m for Vehicle Focal Length 30mm Detector 324X256 Vox Detector Warranty One Year Transport Package Aluminum Alloy Box Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

1 Features   - 324x256 resolution, uncooled Vox detector.    -  NETD 50mk.   - Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.   - Low power consumption, quick start -RS485, analog signal.   - Easy to operate and maintain.   - High aluminum alloy shell with nitrogen inside, can work under harsh  environment 24/7.     2 Technical indicators   Distance Target Human (1.8m×0.5m) Vehicle(2.3 m×2.3 m) Detection distance 720m 1980m Recognition distance 180m 490m Identification distance 90m 240m Thermal lens Focal length 30mm FOV 15.2°×11.4° IFOV 0.83mrad Detector Detector Type Uncooled FPA, 324*256 pixels Pixel 324×256 Spectrum Range 8~14μm NETD ≤[email protected], 300K Frequency 9Hz Non- uniformity Correction Auto/manual Image Process AGC, DDE, Pseudo Color Video output NTSC Pantilt Rotate pan:0º ~ 360º tilt:+60°~ -60° Speed Pan 0.1°~8°/S;tilt 0.1°~6°/S; Presets 200 Communication Interface Pelco-D,Pelco-P optional Baud Rate 2400/4800/9600/19200 bps optional Install Top load Load at most 10kg Size 385mm×212.5mm×260mm(L×W×H) Interface Power AC24V Other RS485,BNC Environment Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC Protection IP66 Anti-vibration 10~55Hz,0.75mm Anti-impact 150m/s2,11ms Saltfrog proof under PH6.5~7.2, continuous spraying fog for 48 hours Power Total AC24V±10%,50Hz Consumption ≤50W Physical   features Weight 7.25kg Installaiton Outdoor base install 3. Our Company China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
