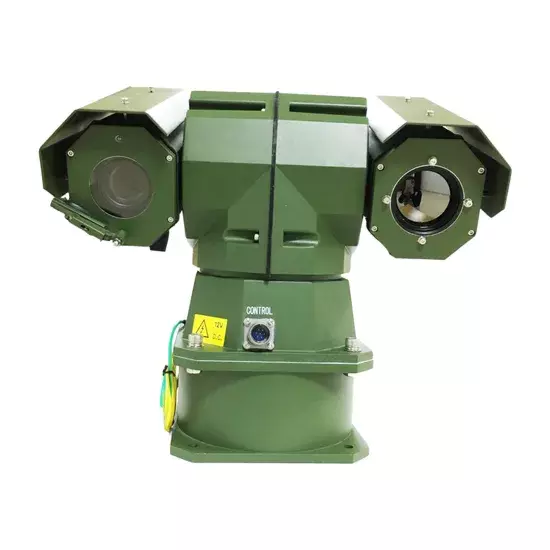

Highway Security Surveillance IP66 Dual Sensor Thermal Imaging Cameras

Model NO. SHR-VLV330SIR5 Sensor CMOS HDMI Format 1080P Horizontal Resolution 384X 288 Resolution Kind Autofocus Lens Certification CE, FCC, RoHS Feature Waterproof / Weatherproof Effective Distance 3300m Sensor Size Same as Lens Sizse Remote Control With Remote Control Detection Distance 0-3300m Recognition Distance 0-800m Identification Distance 0-400m Focal Length 50mm IP IP66 Transport Package Standard Carton Boxes Specification 1PCS Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

Main features 1. Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring 2. Adopting thermal imaging technology, not limited by light source, imaging clearly 3. Day and night 2 megapixel low illuminance color camera, realizing details observing 4. High intelligence, simple to operate, easy to use and maintain 5. 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability 6. Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating Technical indicators   Monitoring distance HD camera 1000m Thermal camera objecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection1300m3300mRecognition600m820mIdentification150m400m Thermal  camera Detector type uncooled microbolometer focal plane array (VOX) Effective pixels 384×288, 640×512 optional Spectral range 8~14μm NETD ≤[email protected],300K Focal length 50mm, fixed FOV 11.0°×8.2° Frame rate 25Hz Lens control Electric focusing(auto focus optional) Image process DDE, pseudo color HD Day Camera & video coding Sensor type 1/2.8" Progressive Scan CMOS Total pixels 2.1 MP Lens focal length f=4.5~135mm, 30X optical zooming Camera control Auto gain control, auto white balance, auto backlight compensation, day/night mode switch manual/auto Coding format H.264 Video resolution 1920×1080 Video frame rate 1~30F/S Image adjustment brightness, contrast ratio, saturation  Pan-tilt Angle Horizontal 360°continuous rotation, tilt -90°~+90° speed Horizontal 0°~50°/s, tilt 0°~50°/s Preset bits Max 128 Cruising 6 cruising paths, 20 presets each path Anti-lightning TVS 6000V Interface Power supply interface DC12V Network interface 1×10Base-T/100Base-TX, RJ45 Other interface RS485, BNC video output Environment indicators operation temp -25ºC~+55ºC Storage temp -40ºC~+65ºC Relative humidity 10%~90% Anti-salt fog continuous spraying for 48 hours at pH 6.5-7.2, surface with no changes Protection grade IP66 Power supply  power supply DC12V, equipped 220VAC~12VDC/3A water proof power supply  power consumption ≤30W Physical features weight 7.5kg Installation method Outdoor base mounting   Application  Certification Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Exhition           Package & Delivery

Package

Standard Wooden or Carton cases

Delivery

7-20 days after order confirned, detail delivery should be decided according to  production season and order quantity.
