High Performance Infrared Optics Head Mounted Helmet Mounted Military Grade Gen 2+ Head-Mounted Night Vision Goggles

Model NO. DA-NVGs Operation Principle Low-light Night Vision Shell Material Metal Customized According to Your Quantity Magnification 1X Lens System 26.8mm Fov 40 Adjusted Interpupillary Distance 57-72mm Focus Range 0.25m to Infinity Image Color Green Waterproof Ipx4 Weight 510g Power Cr123A Li-ion Battery Detection Range 240-300m Transport Package Safety Box with Hard Paper Box Specification DA-NVGs Trademark CZVZ Origin Shaanxi Production Capacity 1000PCS/Month

Product Description

  Product Description

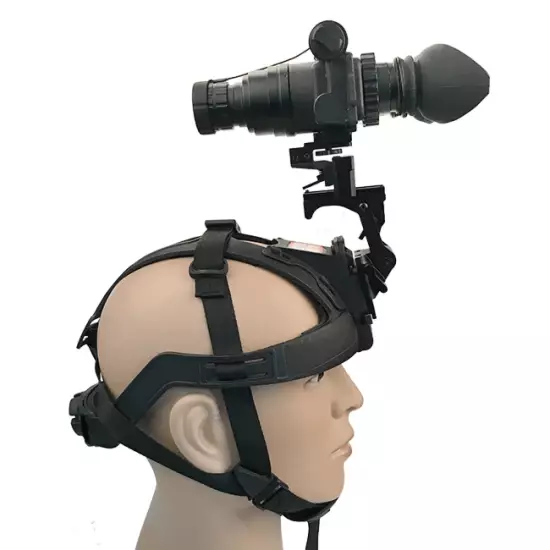

 Gen2+ Gen3 military tactical helmet infrared long-distance night vision binocular goggles were developed to meet military and law enforcement requirements for surveillance at night. This Gen3 night-vision goggles military infrared hunting night vision scope can be viewed by two eyepieces, multipurpose function support it not only can be mounted with the helmet but also can be used for hand-held. It has different objective lenses with different focal distances, so magnification can be changed. It adapts Gen2+ and Gen3 image intensifier tubes with the function of anti-glare and built-in IR illuminator, It is mainly used for military observation, sea defense, frontier reconnaissance, drug smuggling investigation, vehicles, and aircraft maintenance.

Detailed Photos

Product Parameters   ModelDA-NVGs, Gen2+/3Magnification, x1Viewing angle, D40°Lens system26.8mm F/1.2Adjusted Interpupillary distance, mmYesFocus range, m0.25 to infinityEye relief distance, mm15Diopter setting, D+5, -6Power supply1CR123A type battery, 3VDimension, mm160x150x75Weight( with 2 batteries), g500GEN / GEN  Image Intensifier TubesPhotocathode type18mm S-25Photocathode sensitivity, μA/Im≥550Resolution, Ip/mm48-58/57-64Luminous gain, fI/fcd16000-25000Signal-to-noise ratio, typical20:1 or betterTube reliability, hour10000Keep time, year10Effective DistanceDetection range, m220-280Recognition range, m175-230Environmental DataOperating temperature, ºC-40ºC to +50ºCStorage temperature, ºC-30ºC to +50ºCImmersion, hour2 meter for 1.0(optional)Humidity, %up to 98% Packaging & Shipping

Company Profile

CZVZ technology researches, designs, develops, manufactures Gen2+ Gen3 military tactical helmet infrared long distance night vision binocular goggles Technologies that enhance perception and awareness. we bring innovative sensing solutions into daily life through thermal imaging systems, visible-light imaging systems.
