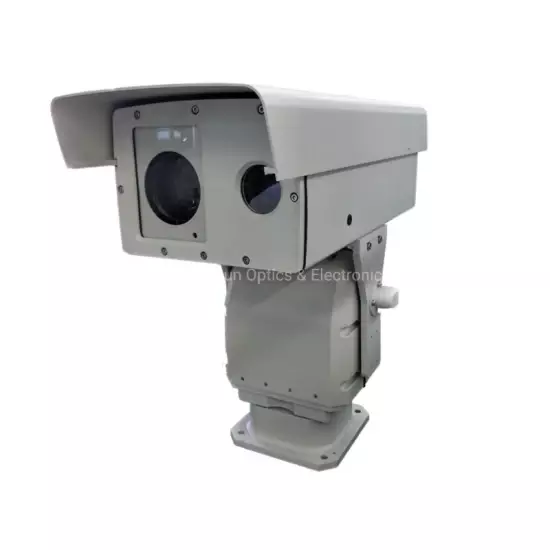

HD Day Night Laser CCTV Camera

Model NO. SHR-HLV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 2.1 Mega Pixel Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof Effective Distance 1km at Night, 2km in The Day Sensor Size 1/1.8′′ Remote Control With Remote Control Night Vision Distance 1km Daytime Vision Distance 2km Pixel 2.1 Mega Pixel Focal Length 10-320mm International Protection IP66 Weight 25kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Packaging & Delivery

Package Size 56.00cm * 58.00cm * 33.00cm Package Gross Weight 25.000kg

Product Description

Product Features 1) Adopt sync zoom laser IR illuminator system,illuminate far with large scope,can realize monitoring at 0Lux2)Day and night type low illumination level color to black camera,to realize monitoring around the clock3) MCIC light homogenization technology,no speckle & Crape ring phenomenon,high marginal definition4) Support fog penetrating,backlight compensation,multistage WDR5) Support telephoto limiting-velocity & 3D locate function6) External MMA micro-adjusting mechanism,no need to remove cover to finish laser alignment adjustment7) Smart shell with professional design,light,firm,high temperature resistance,anti-corrosion, waterproof and acid rain proof SPECIFICATION Monitoring DistanceNight vision1000mDay vision2000mImaging lensFocal length15~300mmFOV0.9°~18.2°CameraSensor type1/3'' surface infrared enhanced CCDPixel752×582ResolutionColor 600 TV line,black & white 650 TV lineMin. illuminatingColor 0.02lux,black & white 0.0009luxLaser IR illuminatorIllumination lens60x zoom laser telephoto lensPower6WWavelength810nmIlluminate angle0.5°~30° continuous changeLight homogenizationMCIC light homogenization technologyShieldMaterialPrecision casting aluminium alloyWindow glass4mm Microlite super white optical glassPan-tiltLoad20kg(top-load)Angle360° continuously rotating horizontally,-60°~+20° looking up and downSpeedPan 0.1°~9°/s,tilt 0.1°~4°/sPresets255pcs,support lens zoom & focus presets memoryAuto cruising8 cruising paths,each path can set up 10 presetsAnti-thunder2000VInterfacePower supply interfaceAC24VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66PowerPower supplyAC24V±10%,equip AC220V~AC24V/5A waterproof power supplyPower consumption≤80WPhysical featuresWeight25.5kgInstallationOutdoor base install APPLICATION  Main use   -Oil fields, Railways, Airports, harbors, engineering constructions, forests fireproofing, Large areas/ invisible real-time monitoring   -Frontier and coast defense, national defense, Night campaign
