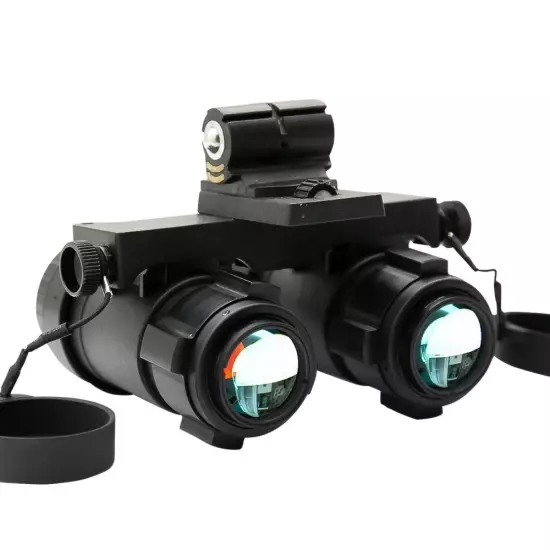

Green Night Vision Binoculars Night Vision Devices for Air Force and Navy Night Vision for Air Flights

Model NO. PNVG9 Style Head-mounted Structure Binocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Customized Customized Customized Transport Package Safety Box Specification 108x131x93mm Trademark DA Origin China Production Capacity 5000 Piece/Month

Product Description

Product Description The most obvious difference between pilot-specific aviation night vision goggles and general night vision goggles is that the objective lens is coated with special C film for aviation equipment, so that pilots can clearly see the targets outside the aircraft during night flight operations (or other periods of reduced visibility). And more importantly, it is to be able to see the data on the brighter instrument panel clearly, without the need for repeated wear, allowing the pilot to quickly and continuously obtain sharp visual perception and better image acuity, which is critical to the success of the pilot's mission.  All of Accessories includes: pilot night vision goggles, bracket for TK41 pilot helmet (support for customized bracket), battery box , clean cloth , safety box.

Product Parameters



Model

PNVG9

Eneraration Image Intensifier Tube

2(+)

Magnification

1x

Field of View

40°

Resolution

≥60 lp/mm

F Number

1

Signal-to-Noise

>20

FOM

>1200

Cathode Sensitivity

>600

Machine Resolution 1×10-3 Lx

1.59mrad

Focus Range

250mm~infinity

Vision Focus Range

±4D

Optical Axis Parallelism

Horizontal divergence less than 60 ', height less than 20 '

Objective lens

25.6mm

Exit Pupil Diameter

14mm

Eye-relief Distance

25mm

Eye Distance Adjustment Range

49~75mm

Adjustment Range

16mm front and rear adjustment, 16mm up and down adjustment, 8° pitch adjustment

Power Supply

3V (2 pieces AA batteries or 4pieces AA batteries)

Continue Working Time

40hours

Weight (Bare Metal)

469g

Dimensions

108×131×93mm

Accessories

Pilot night vision goggles x1

Bracket for TK41 helmet x1

Batterybox x1

Cleancloth x1

Cafetybox x1
