Grade Ground Panoramic Night Vision Goggles Four Eyed Night Vision Security System

Model NO. NVG4E Style Head-mounted Structure Four Eye Night Vision Monocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Customized Customized Customized Transport Package Safety Box Specification 155x136x83mm Trademark DA Origin China Production Capacity 5000 Piece/Month

Product Description

Product Description

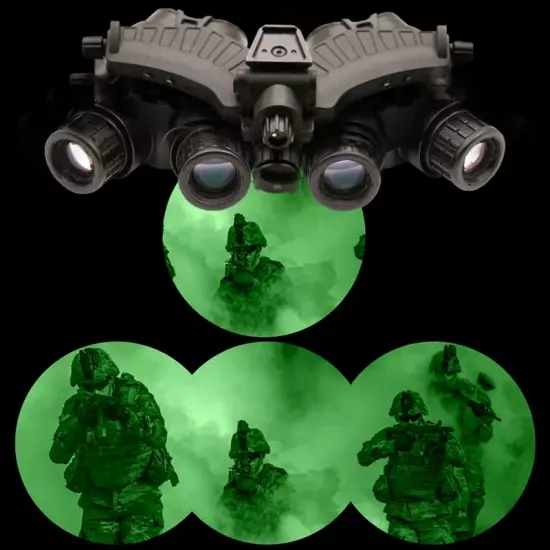

With the new technology, developed a new Ground Panoramic Night Vision Goggles which called NVG4E, The purpose of the NVG4E is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the NVG4E is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer for the SOF community. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD of the two system can be adjusted on the helmet mount.

Product Parameters ModelNVG4EStructural modeHelmeted flip-up/down four-eyed NVGBattery typeLithium battery (cr123Ax1) / cr123Ax4 external battery packPower supply2.6-4.2VInstallationHead mounted(standard American helmet interface)Control modeON/IR/AUTOOver power consumption<0.2W Battery capacity800-3200maHBattery life30-80HMagnification1x     FOV(°)120x50 +/-2 °Horizontal 120+/-2 °Vertical 50 +/-2 °Parallelism of optical axis<0.1°IITEuro Gen3Resolution57-64lp/mmGainAutoLens systemF1.18 ,22.5mmMTF120lp/mmOptical distortion3% MaxRelative Illumination>75%CoatingMultilayer broadband coatingFocus range250mm-∞Focus modeManual focus facilityeye relief30mmPupil diameter8mmVisibility range-1(+0.5~-2.5)IPD adjust typeArbitrary continuously adjustableIPD adjust range50-85mmIPD lock typeManual lockIR850nm ,20mWWorking temperature range-40--+55ºCHumidity range5%-95%WaterproofIP65/IP67 as optionalDimensions155x136x83mmWeight880G(without battery) Packaging & Shipping
