| Name: |

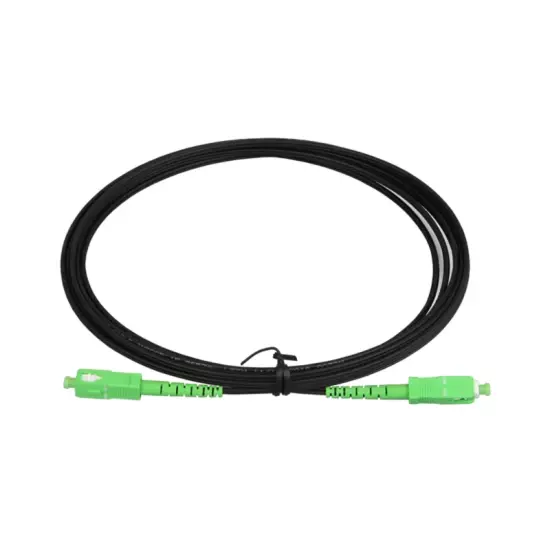

FTTH Fiber Optic Drop Cable Patch Cord Sc/APC to Sc/APC Simplex Singlemode |
| Detail: |
Model NO.
G249-2441
Material Shape
Flat Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Double Core
Certification
RoHS, CE, ISO9001
Brand
czvz
Sheath Material
LSZH
OEM
Yes
MOQ
1
Samll Order
Accepted
Sample
Free of Cost
Delivery Time
1-3 Working Days
Packing
Customized
Connector
Sc/APC-Sc/APC
Fiber Type
G657A1
Cable
Simplex
Transport Package
czvz Bag
Trademark
czvz
Origin
China
HS Code
85447000
|
|
|
|
| Price: |
$1.00
Why Can We Provide this Competitive Price?
With digital management and bulk purchases from original manufacturers and authorized suppliers globally, Router-switch.com guarantees quality and authenticity at a competitive price. |
| Coupon |
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
|
| Availability: | In Stock |
-
Pay by wire transfer. -
Pay with your paypal. -
Pay with your webmoney. -
Pay with your onafriq. -
Pay with your Visa credit card. -
Pay with your Mastercard credit card.
-
Pay with your Discover Card.
-
Pay by Western Union.
- Genuine Guarantee
- Price Protection
- Bulk Order Rebate
- 100% Moneyback
Security/Data Center/Networking
- ● End-to-End Project Support
- ● Smart Industrial Solutions
- ● Global Expert Team
- ● Certified ICT Professionals
24/7 Online Service
Partner with Us
Join Global Partner Program
FTTH Fiber Optic Drop Cable Patch Cord Sc/APC to Sc/APC Simplex Singlemode
Product Description
Product Description CZVZ Drop cable all dielectric for Fiber To The Home (FTTH or FTTx) application containing from 1 to 4 250 µm individually colored single mode optical fibers. The cable contains two Fiber Reinforced Plastic (FRP) strength members and Low Smoke Zero Halogen (LSZH) jacket with nominal dimension 2 x 3 mm. Two parallel FRP make the cable have good compression performance and protect the optical cable. It is small diameter, water-resistant, soft and bendable which makes easy to deploy and maintenance. This cable also provides backward compatibility with existing 9/125 equipment and the performance headroom required to support LED and VCSEL laser light sources
Features| High quality zirconia ferrules | Low insertion loss and high return loss | Series are qualified at 1310nm and 1550nm | 100% tested to guarantee high performance | Buffer Material: PVC | Buffer OD: 900 µm | Polishing way: UPC or APC | Outer jacket:LSZH | Installation Tensile Load: 150 N | Long-Term Tensile Load: 50 N | Crush load:500N | Choice of connectors configuration | Choice of length
Application| Widely used in FTTH access network. | Telecommunication Networks | CCTV Networks | Data communications Networks | Local Area Networks
Product Parameters
CZVZ Drop cable all dielectric for Fiber To The Home (FTTH or FTTx) application containing from 1 to 4 250 µm individually colored single mode optical fibers. The cable contains two Fiber Reinforced Plastic (FRP) strength members and Low Smoke Zero Halogen (LSZH) jacket with nominal dimension 2 x 3 mm. Two parallel FRP make the cable have good compression performance and protect the optical cable. It is small diameter, water-resistant, soft and bendable which makes easy to deploy and maintenance. This cable also provides backward compatibility with existing 9/125 equipment and the performance headroom required to support LED and VCSEL laser light sources About Us
