FTTH Fiber Drop Cable 1 Core 2 Core G652D G657A1 G657A2 Outdoor Indoor Fiber Optic Cable

Model NO. GJYXCH Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Single Core Certification RoHS, CE, ISO9001 Brand OEM Sheath Material LSZH Style Fig 8 Color Black or Other Product Name FTTH Drop Cable 1f G657A2 Steel Wire Messenger Lsz Multi Core 2, 4, 6,8,10,12 Fiber Type Sm G657A1, G657A2 Transport Package Wooden Drum Specification 1 Cores Trademark OEM Origin Shenzhen, China HS Code 8544700000 Production Capacity 50000m/Day

Product Description

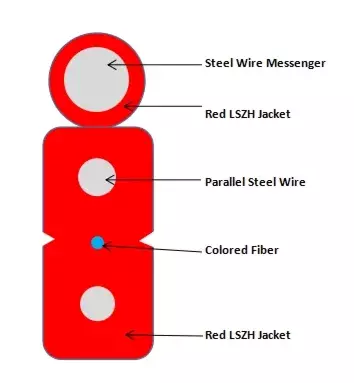

FTTH Fiber Drop Cable 1 Core 2 Core G652D G657A1 G657A2  Outdoor Indoor Fiber Optic Cable   Products Structure  Specification  Product DescriptionThe compact, self-supporting fig 8 aerial fiber optical drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches, it is an enhanced performance FTTH solution. The cable constructed with one/two single mode /bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member and a messenger wire. This cable is very light and easy to install and strip. Technical ParameterItemTechnology parameterCable typeDrop CableCable Count1  2  4  6  8  10 12Fiber colorBlue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, AquaFiber type9/125 (G657A2)Sheath colorBlack and whiteSheath materialLSZHCable dimension (mm)3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)Cable weight (Kg/km)20Min. bending radius (mm)10 (Static) 25 (Static) 30 (Static) 60 (Static)Attenuation (dB/km)0.4 at 1310nm, 0.3 at 1550nmShort term tensile ( N)200; 600Crush resistance (N/100mm)1000; 2200Operation temperature (ºC)-20~+70   Characteristics*Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.*Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber.*Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.*Simple structure, light weight and high practicability.*Novel flute design, easily strip and splice, simplify the installation and maintenance.*Low smoke, zero halogen and flame retardant sheath. Products Pictures  FAQ 1. Are you real manufacturer? Yes, our factory is located in Shenzhen, China,  2. Can you provide the samples? Yes, Samples free of charge, but freight necessary to bear yourself. 3. What is the delivery time? It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity. 4. Can you supply customized products and logo? (OEM/ODM) Yes, we can provide the OEM/ODM, please feel free to let us know your requirements. 5.Do you have warranty for your products? Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
