FTTH Drop Fiber Cable 1f G657A2 Steel Wire Messenger LSZH Fiber Optic Cable for Outdoor

Model NO. GJYXCH Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Single Core Certification RoHS, CE, ISO9001 Brand OEM Sheath Material LSZH Style Fig 8 Color Black or Other Product Name FTTH Drop Cable 1f G657A2 Steel Wire Messenger Lsz Multi Core 2, 4, 6,8,10,12 Fiber Type Sm G657A1, G657A2 Transport Package Wooden Drum Specification 1 Cores Trademark OEM Origin Shenzhen, China HS Code 8544700000 Production Capacity 50000m/Day

Product Description

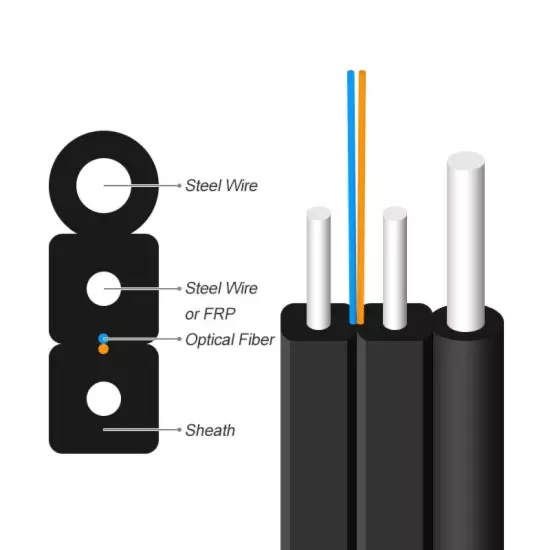

  Product DescriptionThe compact, self-supporting fig 8 aerial fiber optical drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches, it is an enhanced performance FTTH solution. The cable constructed with one/two single mode /bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member and a messenger wire. This cable is very light and easy to install and strip. Technical ParameterItemTechnology parameterCable typeDrop CableCable Count1  2  4  6  8  10 12Fiber colorBlue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, AquaFiber type9/125 (G657A2)Sheath colorBlack and whiteSheath materialLSZHCable dimension (mm)3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)Cable weight (Kg/km)20Min. bending radius (mm)10 (Static) 25 (Static) 30 (Static) 60 (Static)Attenuation (dB/km)0.4 at 1310nm, 0.3 at 1550nmShort term tensile ( N)200; 600Crush resistance (N/100mm)1000; 2200Operation temperature (ºC)-20~+70   Characteristics*Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.*Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber.*Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.*Simple structure, light weight and high practicability.*Novel flute design, easily strip and splice, simplify the installation and maintenance.*Low smoke, zero halogen and flame retardant sheath.
