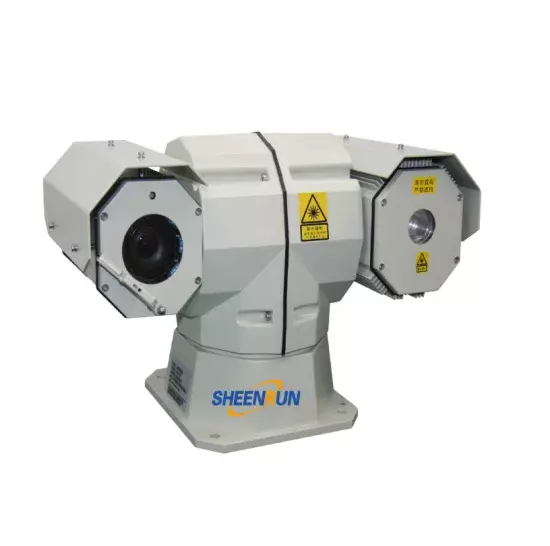

Factory Direct OEM/ODM HD IP CCTV Night Vision PTZ Surveillance Laser Camera

Model NO. HLV311 HD Integrated Night Vision Camera Sensor CMOS Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 600m Sensor Size 1/3 inch Remote Control With Remote Control Day Vision 1000meters Night Vision 500meters Lens 4.5-135mm Laser Illuminitor Support Protection Grade IP66 Zoom 30X Optical Zoom Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Packaging & Delivery

Package Size 65.00cm * 45.00cm * 38.00cm Package Gross Weight 45.000kg

Product Description

Product Features Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black  Day & night low light megapixel color to black camera, day&night continuous monitoring Auto white balance, auto gain control, auto exposure control High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image Dual stream function, small time delay, fully satisfying different network bandwidth Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad Motion detection and alarm linkage, providing intelligent video monitoring application Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  ModelSHR-HLV535   Monitoring distanceNight vision500m   Day vision1100m   Laser illuminatorPower5w   Wave length810nm   Angle0.7°-50°   Even lightMCIC   Visible light cameraSensor1/2.8" Progressive Scan CMOS   Total pixels2.1MP   Lens4.5-135mm, 30xoptical zoom   Lens apertureF1.6-4.4   Min lux0.05Lux (color), 0.01Lux (black and white)   Camera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch   Video codingCoded formatH.264   Video resolution1920 x 1080   Bitrate64Kbps-4Mbps   Frame rate1-25f/s(50Hz), 1-30f/s(60Hz)   Subtitle overlaystation logo, date, time   Image adjustmentbrightness, contrast, saturability   Supporting protocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)     Pan tiltAnglePan 360° continuous, tilt -90° to +90°   SpeedPan 0°-80°/s, tilt 0°-60°/s   Presets256   Cruising function6 paths   InterfaceNetwork interface1×10Base-T/100Base-TX, RJ45   Power supply interface1×DC 24V socket, for external power adapter   Audio interface1×Line In, 1×Line Out   Alarm interface1 switch input, 1 switch output   Environmental indicatorsWork temp.-25ºC to +55ºC   Storage temp.-40ºC to +65 ºC   Protecting gradeIP66   Anti-vibration10-55Hz, 2m/s2, 0.75mm   Anti-impact150m/s2, 11ms   Anti-salt fogAfter continuous spraying for 48 hours at PH 6.5-7.2, surface does not change   Power supplyPowerDC 24V±5% /4.0A, please use appendant power   Consumption≤60W   Physical featuresSize240mm×374mm×243mm   Weight8Kg   CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world.
