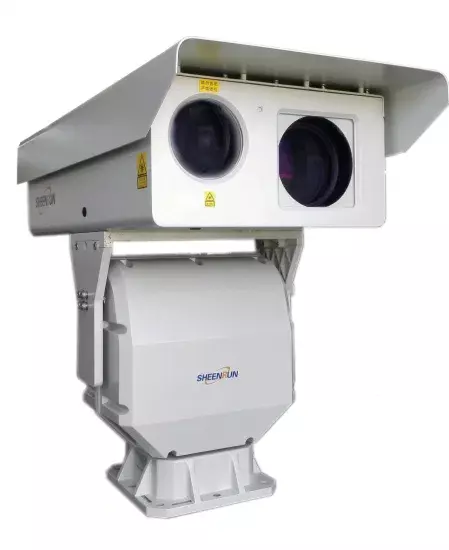

Factory Direct HD IP CCTV PTZ Long Range Night Vision Surveillance Camera

Model NO. HLV3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 6500m Sensor Size 1/3 inch Remote Control With Remote Control Camera Type Laser Night Vision Camera Warranty 12 Month Fog Penetration Optional Coding Mode H.264/MPEG4/Mjpeg Pantilt Preset 255 Power DC30V Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China

Product Description

Product features Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition Supporting fog penetration, backlight compensation, multistage wide dynamic Optional auto focusing function, realizing multiple focusing mode and triggering mode Supporting camera back focal length fine adjustment technology and camera remote debugging Supporting long focal length speed limit and 3D locating function Abundant network protocol and good network applicability, adapting all kinds of network environment External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Monitoring distanceNight vision3000metersDay vision6500metersImaging lensFocal length20~1000mmFOV0.38°~17.8°Auto focusingSupporting(optional)Fog penetrationSupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower20WWave length810nmIlluminating angle0.3°~18°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching -45°~+45°(-60°~+20° optional)SpeedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bits255 bits,supporting lens zooming,focusing and preset bitsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤150WPhysical featuresWeight50kgInstallation methodoutdoor pedestal mounting Effect demo: Product application: Boarder security surveillance patrol Coastal&sea port long range monitor&search rescue Military/Police mission assistance Forest Fireproof monitor Oilfields, Railways, Airports, Harbors, Large areas real-time monitoring  Boat,ship, vehicle mounted. We can customize systems for your detailed requirements. 1km night vision camera 2km night vision camera 3km night vision camera 4km night vision camera 5km night vision camera 16-35km night vision camera
