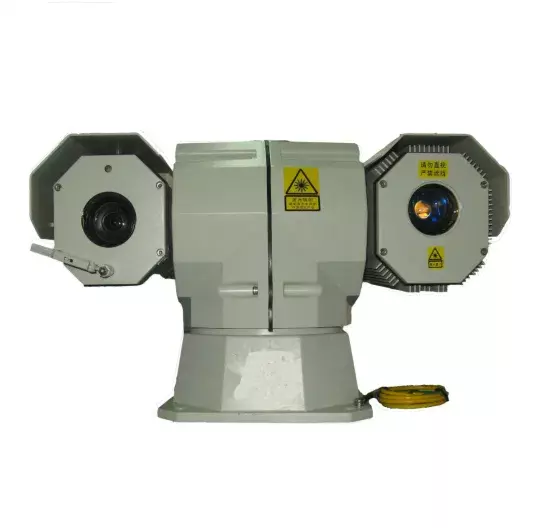

Day and Night Camera Laser PTZ (HLV311)

Model NO. SHR-HLV311 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof Effective Distance ≧30m Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 300m Daytime Vision Distance 600m Pixel 2.1 Mega Pixel Focal Length 4.7-94mm International Protection IP66 Weight 8kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Featutes   -300m night vision distance    - pan  360°,  tilt -90°- 90°   - IP camera     2 Technical indicators   monitoring  distance  300m at night  600m in the daytime  Day light  camera Sensor 1 / 2.8" progressive scan CMOS Pixel 2.1 mega pixel  Focal length  4.7-94mm, 20x optical zoom  Aperture value F1.6-3.5 Camera control  AGC, AWB, Automatic Backlight Compensation, Supports manual and automatic day and night mode  switching Minimum illumination 0.05Lux(color), 0.01Lux(black and white) Video code  Format  H.264 Video resolution  1920 * 1080 Bitrate and frame rate  Bitrate: 64Kbps-4Mbps, frame rate: 1-25fps(50Hz), 1-30fps(60Hz) Laser  illuminator  Power  5W Wavelength  810nm Illuminating angle  2°-50°, synchronous continuous adjustment Even light  LCMM even light technology  Pan-tilt Speed  Pan speed 0-80°/s, tilt speed 0-60°/s Angle  Pan 360°, tilt +90° to -90° Presets  Maximum 256 Cruising paths  6 cruising paths Interface Power supply interface  AC24V socket, for external power adapter Internet  interface 1 x 10Base-T / 100Base-TX, RJ45 interface Environmental  indicators Working temperature  -25ºC to +55ºC ( -40ºC to +55ºC can be customized) Storage temperature  -40ºC to +65ºC International protection   IP 66 Shakeproof 10-55Hz, 2m/S2, 0.75mm;  Anti-impact  150m/S2, 11ms Anti-salt fog 48 hours spraying continuously under PH 6.5-7.2 Power  Working power supply AC24V±5% / 2.5A, please use the enclosed power  equipment Whole device  power consumption  60W Physical  features Weight  8kg Size  240 * 374 * 243mm
