Czvz Sc/Upc Pre-Embedded Singlemode Optical Fiber Quick Assembly Fast Connector

Model NO. G529-391 Material Shape Flat Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Single Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PC MOQ 10 Small Order Accepted Trade Term Fob/EXW Transport Package Plastic Box HS Code 85367000

Product Description

Product Description

CZVZ Pre-embedded Field fast connector is a widely used  FTTx that does not need epoxy or polishing with G652D fiber in a pre-polished SC ferrule. it is designed to be used with a butterfly drop cable of 3.0 mm x 2.0 mm dimension and 3.0mm patch cable. It is very easy and fast to install for emergent installation and repair/replacement requirements on the site. It accommodates a reliable and durable optical network especially suitable for advanced fiber optic systems requiring exceptional stability and low loss. There are SC/UPC and SC/APC for your choice. The cable clamp is a specially designed tool to help the user strip the fiber coating to the preset length. It has a ruler on itself to help the user to strip to a preset length effectively.

Our Advantages

|  Widely applied in optical fiber communication system |  FTTH access network |  Telecommunication Networks |  CCTV Networks |  Data Center |  Local Area Networks

Product Parameters

Fiber Mode

Singlemode

Polishing

UPC&APC

Applicable Cable

3.0mm

2.0*3.0mm Drop cable

Insert Loss (dB)

Max.≤0.5dB, Typical≤0.3dB

Return Loss (dB )

UPC: Max -40dB, Typical -45dB

APC: Max -50dB, Typical -55dB

Tensile Strength (N)

>50

Operating Temperature (°C)

-20 ~ +75

Storage Temperature (°C)

-40 ~ +85

Re-Operation Times

Max. 5 times

Circulatory Test During High-low Temperature (dB)

IL ≤ 0.3dB, RL ≤ 5dB

Vibration and Impaction (dB)

IL ≤ 0.3dB, RL≤ 5dB

High Temperature and Humidity Test (85°C/85%H)

IL ≤ 0.3dB, RL≤ 5dB

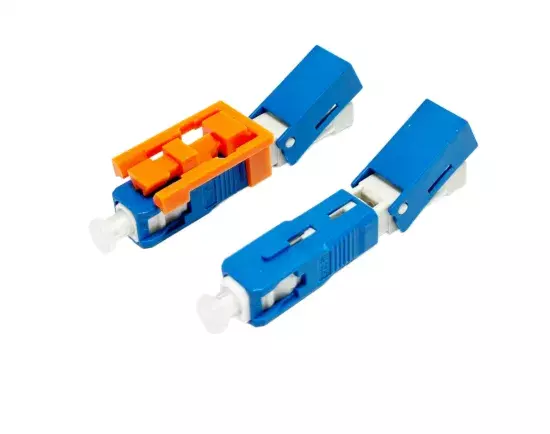

Detailed Photos



|  Features |  Quick assembly connectors are reliable, cost-effective with quick termination |  Pre-embedded fiber and pre-polished ceramic ferrule (UPC/APC) ensures excellent optical performance |  No epoxy, no polishing&no curing |  Easy to operate and quick install Ideal for indoor and outside plant applications |  Unique tail clamping mechanism to ensure the tensile strength, security and stability

FAQ

Q: Can I get a free sample to test? A: Yes, you can. We can provide free cost of sample for your testing.

Packaging & Shipping

packing: 5pcs/box 100 boxes/Carton



Ordering Information

PART NO.

DESCRIPTION

G529-391

 GoreLink FIC,SC/UPC SM,Pre-embedded

G529-491

 GoreLink FIC,SC/APC SM,Pre-embedded
