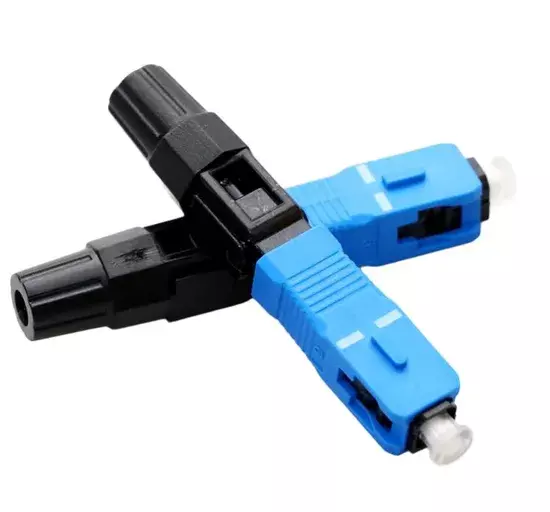

Czvz Sc/Upc Optical Fiber Fast Connector, Suitable for FTTH Field Fast Connector

Model NO. G529-351 Material Shape Flat Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Single Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PC MOQ 10 Small Order Accepted Sample Free of Cost Transport Package Plastic Box HS Code 85367000

Product Description

Product Description

CZVZ Pre-embedded Field fast connector is a widely used  FTTx that does not need epoxy or polishing with G652D fiber in a pre-polished SC ferrule. it is designed to be used with a butterfly drop cable of 3.0 mm x 2.0 mm dimension and 3.0mm patch cable. It is very easy and fast to install for emergent installation and repair/replacement requirements on the site. It accommodates a reliable and durable optical network especially suitable for advanced fiber optic systems requiring exceptional stability and low loss. There are SC/UPC and SC/APC for your choice. The cable clamp is a specially designed tool to help the user strip the fiber coating to the preset length. It has a ruler on itself to help the user to strip to a preset length effectively.

Our Advantages

|  Widely applied in optical fiber communication system |  FTTH access network |  Telecommunication Networks |  CCTV Networks |  Data Center |  Local Area Networks

Product Parameters

Fiber Mode

Singlemode

Polishing

UPC&APC

Applicable Cable

3.0mm

2.0*3.0mm Drop cable

Insert Loss (dB)

Max.≤0.5dB, Typical≤0.3dB

Return Loss (dB )

UPC: Max -40dB, Typical -45dB

APC: Max -50dB, Typical -55dB

Tensile Strength (N)

>50

Operating Temperature (°C)

-20 ~ +75

Storage Temperature (°C)

-40 ~ +85

Re-Operation Times

Max. 5 times

Circulatory Test During High-low Temperature (dB)

IL ≤ 0.3dB, RL ≤ 5dB

Vibration and Impaction (dB)

IL ≤ 0.3dB, RL≤ 5dB

High Temperature and Humidity Test (85°C/85%H)

IL ≤ 0.3dB, RL≤ 5dB

Detailed Photos



|  Features |  Quick assembly connectors are reliable, cost-effective with quick termination |  Pre-embedded fiber and pre-polished ceramic ferrule (UPC/APC) ensures excellent optical performance |  No epoxy, no polishing&no curing |  Easy to operate and quick install Ideal for indoor and outside plant applications |  Unique tail clamping mechanism to ensure the tensile strength, security and stability

FAQ

Q: Can I get a free sample to test? A: Yes, you can. We can provide free cost of sample for your testing.

Packaging & Shipping

packing: 10pcs/box 100 boxes/Carton



Ordering Information

PART NO.

DESCRIPTION

G529-351

 GoreLink FIC,SC/UPC SM,Pre-embedded

G529-451

 GoreLink FIC,SC/APC SM,Pre-embedded
