Czvz 24 Fibers Optical Fiber Cable, Indoor Distribution Cable, Tight Buffer, Singlemode

Model NO. G119-424 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material Ofnr OEM Yes MOQ 1000m Trial Order Accepted Suitable Indoor Sample 1-2m Free Transport Package Polywooden Spool Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

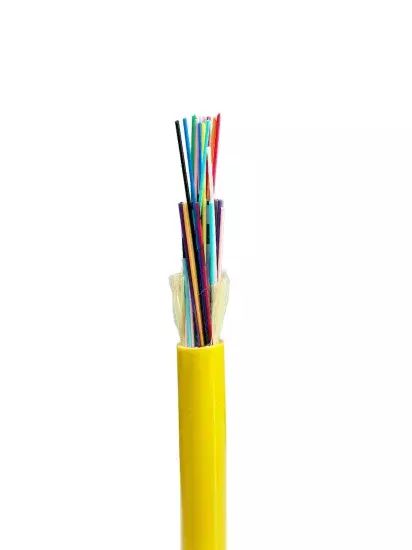

CZVZ Indoor Tight-Buffered Optical Fiber Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, soft and easy to peel. It is widely used as pigtails and jumpers for communication equipment.

Features

|   Provides Gigabit Ethernet link distances of 1000Mtr at 850nm and 550Mtr at 1300nm |  10GbE links of 300Mtrs at 850nm |   Widely used between wiring closets and equipment rooms |   Tested to meet or exceed TIA & GR-409-CORE standards |   Non-unitized tight-buffered distribution indoor cable |   Light weight and buffered to 900um for easy stripping and handling |   Characteristic of fiber color: blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua |   Customized length and jacket

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Product

Fiber optic indoor distribution bulk cable

Fiber Count

2 - 48 cores

Strength Member

Aramid Yarn

Cable Type

Tight Buffered

Cable Color

Yellow(SM); Orange(MM);Aqua(OM3&OM4)  or Customized

Jacket

PVC / LSZH / Riser / Plenum Available



Optical Fiber Characteristics For G652D & G657A

Fiber Type

Singlemode - G652.D

Singlemode - G657.A

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

1310nm≤0.35

1383nm ≤0.35

1460nm ≤0.25

1550nm ≤0.21

1625nm ≤0.23

Zero Dispersion Wavelength

1310-1324nm

1312±10nm

Fiber Cutoff wavelength(nm)

≤1260

≤1260

Cladding diameter(um)

125±1.0

125±0.7

Cladding material

SiO2

SiO2

Cladding non-circularity(%)

≤1.0

≤0.7

Coating/cladding concertricity error(um)

≤12.0

≤12.5

Coating diameter(um)

245±7

245±5

Core diameter(um)

9±2.5

9±2.5

Core non-circularity(%)

≤6.0

≤6.0

Bending Diameter(mm)

A1

A2

10mm

7.5mm
