Czvz 12 Core Singlemode Indoor/Outdoor Optical Fiber Cable

Model NO. G1R9-306 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material Ofnr OEM Yes MOQ 1000m Trial Order Accepted Transport Package Polywooden Spool Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

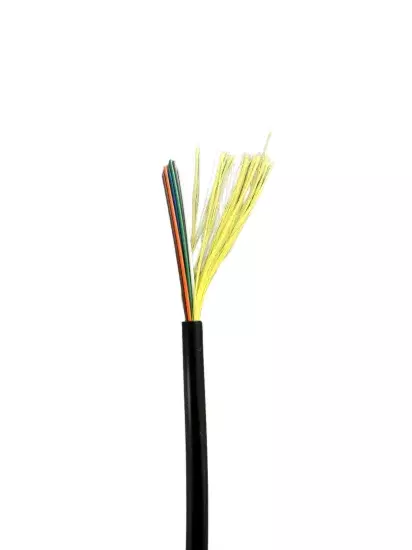

CZVZ Indoor/Outdoor Optical Fiber Tight-Buffered Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, soft and easy to peel. It is widely used as pigtails and jumpers for communication equipment.

Features

|   Provides Gigabit Ethernet link distances of 1000Mtr at 850nm and 550Mtr at 1300nm |  10GbE links of 300Mtrs at 850nm |   Widely used between wiring closets and equipment rooms |   Tested to meet or exceed TIA & GR-409-CORE standards |   Non-unitized tight-buffered distribution cable |   Light weight and buffered to 900um for easy stripping and handling |   Characteristic of fiber color: blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua |   Customized length and jacket

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Product

Fiber optic indoor/outdoor distribution bulk cable

Fiber Count

2 - 48 cores

Strength Member

Aramid Yarn

Cable Type

Tight Buffered

Cable Color

Black

Jacket

OFNR(PVC / LSZH / Plenum Available)



Optical Fiber Characteristics For G652D & G657A

Fiber Type

Singlemode - G652.D

Singlemode - G657.A

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

1310nm≤0.35

1383nm ≤0.35

1460nm ≤0.25

1550nm ≤0.21

1625nm ≤0.23

Zero Dispersion Wavelength

1310-1324nm

1312±10nm

Fiber Cutoff wavelength(nm)

≤1260

≤1260

Cladding diameter(um)

125±1.0

125±0.7

Cladding material

SiO2

SiO2

Cladding non-circularity(%)

≤1.0

≤0.7

Coating/cladding concertricity error(um)

≤12.0

≤12.5

Coating diameter(um)

245±7

245±5

Core diameter(um)

9±2.5

9±2.5

Core non-circularity(%)

≤6.0

≤6.0

Bending Diameter(mm)

A1

A2

10mm

7.5mm
