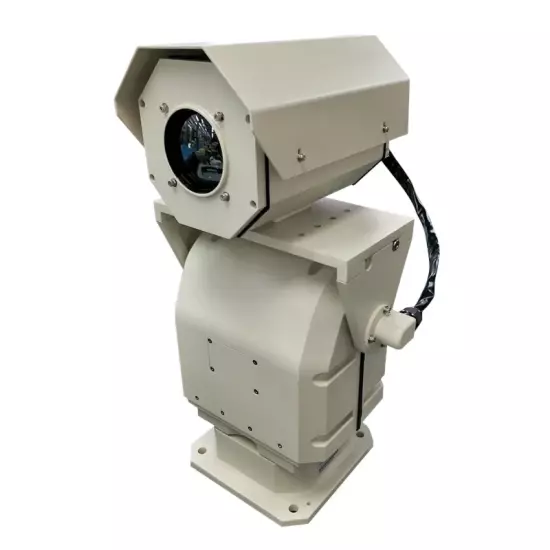

China Sheenrun Security Thermal Imaging Cameras

Model NO. SHR-TIR63R Sensor Uncooled Vox Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance ≧30m Remote Control With Remote Control Size 251mmx115mmx117mm Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin China Production Capacity 1000 Units / Month

Product Description

1  Product Features   *  324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox *  25µm super small pixel,image quality fine,observe small target more clearly,further detection distance *  High sensitivity, NETD can reach 50mk and frame at 25Hz *  Word originate 20~60mm continuous zooming,can search in a wide range as well as identify target far,don't lost    target *  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color *  Low power consumption, quick start-up, stable performance, image clearly with high uniformity * RS 485 interface control, analog video signal output * Simple operation,easy to use and maintain * Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh      environment,overlength working lifetime 2 Technical indicators    Monitoring distance Object People(1.8m×0.5m) Vehicle(2.3m×2.3m) Detect distance 1440m 3960m Recognize distance 360m 990m Identification distance 180m 480m Thermal lens Focal length 20~60mm,3x optical zoom FOV 7.6°×6.1°~22.6°×18.2° F 1.0 Lens control Electronic zoom/focus(auto focus is optional) Detector Detector type Uncooled FPA detector(vox) Pixel 324×256,pixel 25µm Spectrum 8~14μm NETD ≤50mK Frame 25Hz NUC Auto/Manual/Background correction Image process DDE,pseudo color Video output PAL Interface Power supply interface DC12V Other interface RS485,BNC Video output Environmental indicators Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC International protection IP66 Anti-vibration GB/T 4857.10-2005 Anti-impact GB/T 15412-94 Free drop test method Anti-thunder 2000V Power Power supply DC12V(attached AC220V/DC12Vpower adapter) Power consumption ≤8W Physical features Weight ≤1.8Kg Size 251mm×115mm×117mm(L×W×H,contain sunshield cover) Installation Outdoor base install 3 Demo photo 4 Company photos
