China Manufacturer Zipcord Singlemode Duplex Fiber Optic Cable, Indoor Cable

Model NO. G129-101 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Double Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material LSZH OEM Yes MOQ 1000m Trial Order Accepted Suitable Indoor Sample 1-2m Free Transport Package Polywooden Spool Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

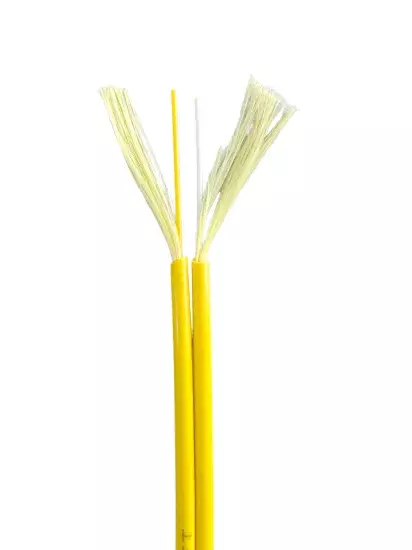

CZVZ Indoor Zipcord fiber cable contains 2 fibers with aramid yarn as strength members to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is lightweight, softness, and easy to peel. It is widely used as pigtails and jumpers for communication equipment.

Features

|   As building to building connecting cable |   As indoor soft cable along the wall,ceiling, between layers, and in conduits |   Tested to meet or exceed TIA & GR-409-CORE standards |   Lightweight and buffered to 900um for easy stripping and maintenance |   Characteristic of fiber color: blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua |   Meet or exceed Standard Compliance ISO/IEC 11801, TIA-EIA

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Product

Zipcord fiber optic cable

Fiber Count

Duplex

Strength Member

Aramid Yarn

Cable Type

900um Tight Buffered

Cable Color

SM( Yellow) , MM(Orange),OM3,OM4(Aqua)

Jacket

LSZH/Riser/Plenum



Optical Fiber Characteristics For G652D & G657A

Fiber Type

Singlemode - G652.D

Singlemode - G657.A

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

1310nm≤0.35

1383nm ≤0.35

1460nm ≤0.25

1550nm ≤0.21

1625nm ≤0.23

Zero Dispersion Wavelength

1310-1324nm

1312±10nm

Fiber Cutoff wavelength(nm)

≤1260

≤1260

Cladding diameter(um)

125±1.0

125±0.7

Cladding material

SiO2

SiO2

Cladding non-circularity(%)

≤1.0

≤0.7

Coating/cladding concertricity error(um)

≤12.0

≤12.5

Coating diameter(um)

245±7

245±5

Core diameter(um)

9±2.5

9±2.5

Core non-circularity(%)

≤6.0

≤6.0

Bending Diameter(mm)

A1

A2

10mm

7.5mm

CZVZ Indoor Zipcord fiber cable contains 2 fiber with aramid yarn as strength members to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, softness and easy to peel. It is widely used as pigtails and jumpers for communication equipment. About Us
