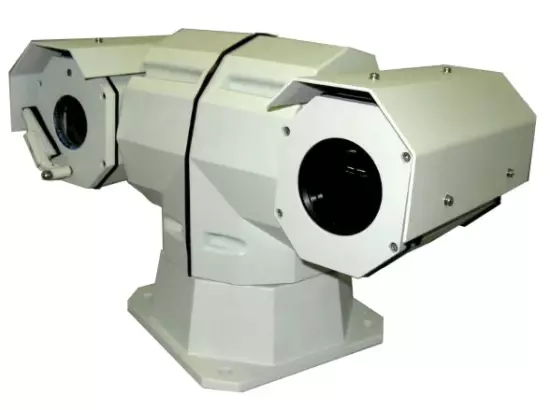

China Dual Sensor Thermal Imaging Camera (HLV330SIR5R)

Model NO. SHR-HLV330SIR5R Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Dual Sensor Camera Effective Distance Over 1000m Sensor Size 1/2.8 Inch Remote Control With Remote Control Camera Type Dual Sensor Thermal Camera Thermal Detectiion Distance 1200m for Human, 3300m for Vehicle Thermal Recognition Distance 600m for Human, 820m for Vehicle Day Light Camera Monitor Distance 1000m Thermal Camera Detector Uncooled a-Si Thermal Lens 50mm Daylight Camera Lens 4.5-135mm, 30X Optical Zoom Daylight Camera Pixel 2.1MP Protection Degree IP66 Weight 7.5kg Transport Package Carton / Wooden Case Specification 7.5kg Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

1 Features   - Double-spectrum design: Combine infrared, visible light imaging together,   has the function of intelligence high speed pan-tilt and infrared thermal imaging. - No blind spot: No blind spot; 0°~80°/s; shifting function; pan rotate 360°; tilt    rotate +90°~-90° -  Intelligence: 128 pre-setting bits, 6 tracking path, 30S self-check, keep watching     function; 2400-19200 Baud Rate PELCO D,P protocol; OSD menu function;  - Double video output: Double video output. 10 pseudo colors of infrared images;    2 black & white format; can penetrate rain, fog and snow; - Electronic scanning: Easy to lock the target - Other special functions: Pre-setting bits, scanning, automatic cruising,    keep watching 2 Technical Indicators   Effect DistanceTargetHuman (1.8mx0.5m)Vehicle (2.3mx2.3m)Thermal camera detecting distance1200m3300mThermal camera recognizing distance600m820mVisible light camera1000mVisible Light CameraSensor1/2.8" progressive scan CMOSPixel2.1MPFocal length4.5-135mm, 30x optical zoomVideo resolution1920 x 1080Video frame rate1-25fps(50Hz), 1-30fps(60Hz)Coding format H.264Thermal CameraDetector Uncooled micro bolometer focal plane array(a-si) Pixel384x288Spectrum range8-14μmNETD≤[email protected], 300KFocal length50mmFOV11.0° x 8.2°Image processingDDE, pseudocolorFrame rate25HzPantiltAnglePan 360°, tilt -90° to +90°SpeedPan 0°-50°/s, tilt 0°-50°/sPreset 128Crusing6 tracking paths, each path can set 20 presetsInterfacePower supplyDC12VInternet interface1x10Base-T/100Base-TX, RJ45 interfaceEnvironmental indicatorsTemperatureWorking temperature-25ºC to +60ºC (optional -40ºC to +55ºC ) , storage temperature-40ºC to +65ºCProtection degreeIP66Power supplyPower supplyDC12V, waterproof AC220V/110V-DC12V/3A power adapterPower consumption≤30WWeight7.5kg 3 Product Photo 4 Company Photos  5 FAQ

(1)  Is your company a manufacturer?      Yes. China CZVZ manufactures thermal camera, laser camera and multi-    sensor camera since 2004.

(2) What is the price?

      Please kindly send me the specificatons or application details and then we will  send you suitable camera's demo video, specifications and price.

(3) What is your warranty?

   We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized products?

   Yes.

(5) Does your company accept OEM?

   Yes.
