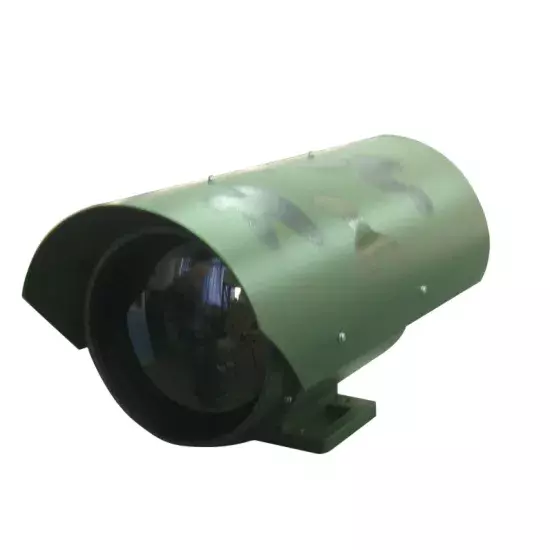

Cheap PTZ Forest Fire Detection IP Thermal Imaging Camera China

Model NO. SHR-TIR185R Sensor Vox HDMI Format PAL Video Output Horizontal Resolution 324X 256 Resolution Kind Auto / Manual Certification CE, FCC Feature Waterproof / Weatherproof Effective Distance ≧30m Sensor Size Same as Lens Sizse Remote Control With Remote Control Detection Distance 0-11880m Recognition Distance 0-2970m Identification Distance 0-1440m Focal Length 36-180m IP IP66 Transport Package Aluminum Alloy Box Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

Main features 1. 384x288 resolution, uncooled Vox detector. 2. 25μm, can obtain clear details, and realize longer distance monitoring. 3. NETD 50mk. 4. First developed 36~180mm 5x continuous optical zooming, can realize large-scale search and also identify distant target. 5. Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors. 6. Low power consumption, quick start, steady performance, clear and smooth images. 7. RS485, analog signal. 8. Easy to operate and maintain. 9. High aluminum alloy shell with nitrogen inside, can work under harsh environment 24/7. Technical indicators   Effecting  Distance Objects People (1.8mx0.5m) Vehicle (2.3mx2.3m) Detect  distance 4320m 11880m Recognize  distance 1080m 2970m Identification  distance 540m 1440m IR Lens Focal length 36~180mm 5x continuous zooming FOV 2.5°×2.0°~12.7°×10.2° MRAD 0.14~0.69mrad Lens control Electric zoom, electronic focus (auto focus  is  optional) Detector Detector type Uncooled focal plane infrared Vox detector Resolution 384x288 Spectrum range 8~14μm NETD ≤50mK F1.0,300K Non-uniformity  correction Manual/auto/background correction Image process DDE, palette colors Video output PAL/NTSC Interface Power supply DC12V Other interface RS485, BNC video output Environmental  indicators Working  temperature -25ºC~+55ºC Storage  temperature -40ºC~+65ºC International  protection IP66 Anti-vibration 10~55Hz, 0.75mm Anti-impact 150m/s², 11ms Anti-saltfog under PH6.5~7.2, continuous spraying fog for  48 hours Power supply Power supply for  whole device DC12V Total power  consumption ≤8W Others Weight ≤7Kg Size 440mm×213mm×217mm(L×W×H, including  shield) Application    CZVZ products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project, frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.   Package & DeliveryOur Services 1. We generally offer one year warranty. Extended warranty is also available.  2. Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. 3. OEM available. 4. Customized product available.    Certification Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Exhibition photos           ☆ Mail to zhoufei(@)sheenrun(dot)com for a quick inquiry.
