8 Port Fiber Optical Distribution Box, Outdoor Box FTTH

Model NO. G801-083 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PC OEM Yes MOQ 1 Samll Order Accepted Sample Free of Cost Delivery Time as Per The Order Packing Customized Adapter Type Sc Fiber Type G652D Transport Package Neutral Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

CZVZ Fiber optic distribution box(FDB) is designed to a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system.It is also suitable for 1x4,1x8 splitters and can be SC or LC connector. Its waterproof design can be used in indoor or outdoor environment. A double-layer design can save more space and is easy to operate and maintain. It can be wall mounting or pole mounting installation. It is suitable for Mini PLC Splitter as well as modular PLC Splitter box type as per your application.

Features

|   Fiber to The Point (FTTX) |   Fiber to The Home (FTTH) |   Passive Optical Networks (PON) |   Gigabit Passive Optical Networks (GPON) |   Local Area Networks (LAN) |   Cable Television (CATV) |   Test Equipment

  Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Product

CZVZ Fiber Optic Distribution Box

No. of Port

4 Port /8 Port

Max. Capacity

8 core

Mounting Way

Wall Mounting or Pole mounting

Material

High density PC

Fiber Tray

12 core/Tray

Type of Cable

SM Or MM

Max. cable in Diameter

12mm

No. of cable In /Out

2 cable in and 8 cables out

Connector type

SC/UPC or SC/APC or LC/UPC or LC/APC

Splitter type

1x4, 1x8 Mini splitter or 1x4,1x8 Cassette splitter

Dimension(H*W*D)

243mm x 195mm x 55mm

Color

Black or Grey

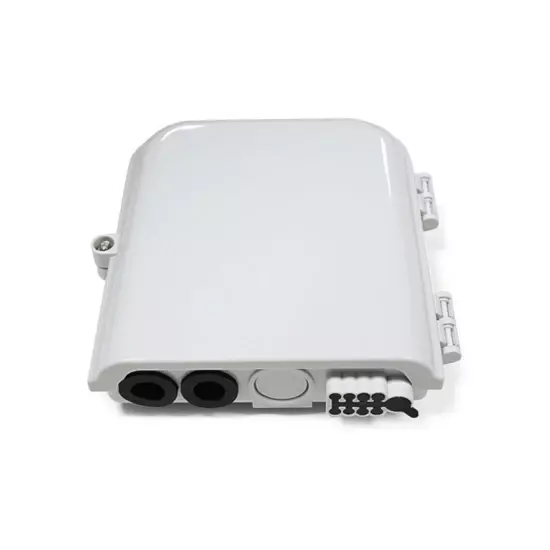

    CZVZ Fiber optic distribution box(FDB) is designed to a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system.It is also suitable for 1x4,1x8 splitters and can be SC or LC connector.   Detailed Photos
