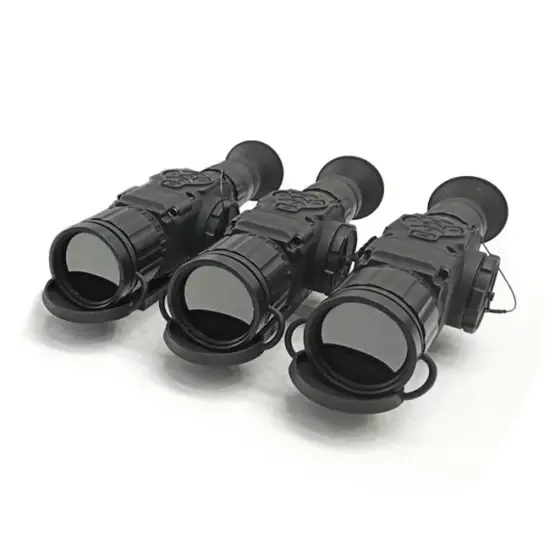

75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope Thermal Sight

Model NO. DA-75-3/6 Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Sensor Uncooled Resolution 640*480px/384X288X Wavelength Response Range 8-14um Frame Rate 50Hz Focal Length Thermal 75mm Polarity White/ Black/Color Waterproof Ipx4 Micro Display 800*600 OLED Binocular Start Time Less Than 5s Eye Relif 52mm E-Zoom 2X.4X Real Time Video Output Yes External Power Supply Yes Transport Package Military Safety Box Specification DA-75-3/6 Trademark CZVZ Origin Shaanxi Production Capacity 1000PCS/Month

Product Description

75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight provides amazing image quality through total darkness, fog, or smoke. Darkness, camouflage, or bright lights will not affect the sensitivity of these units. All units have feature E-Zoom to expand your optical magnification. They're Ideal for nighttime hunting, camping, competitive games, and other outdoor sports.

These units are priced like no other thermal devices in their class - as much as half of what you would expect to pay! Once you experience Thermal scope, you may not want to use anything else again!

    Product Description

1. Nonlight leakage eyepiece design of 75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight.

Applying nonlight leakage eyepiece design, night vision add-on for day scope guarantees your perfect camouflage and nonlight disturbing, which helps you see clearly than others.



2. Color mode and reticle mode of 75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight.

Thermal imaging spotting scope has different reticle modes and 6 color modes which are white hot, black hot, green light, blue light, yellow light, and red light. We also provide a customized mode for reticle mode and color mode as your requirement.

 3. Mulitple power supplies of 75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight.

The power supply can not only be provided by 4 CR123 batteries, 2 CR123 batteries also guarantee thermal scope working normally. Besides that, power bank and USB charger are also available for power supply

4. Real-time video output of 75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight.

Connecting with video output cable, thermal scopes support video output in real-time.



  Product Parameters   ModelDA-75-6/3Sensor resolution, pxUncooled  640x480px/384*288pxMaterial Amorphous SiliconImage size, px800x600 Frame rate, Hz50Video outputYesThermal sensitivity<50 mkDisplay Color OLED matrix, SVGA <800x600Spectral range, μm7~14Lens system, mm75mm F/1.0FOV, deg(H x V)  8.3°x 6.2°/(H x V)5.0°x 3.7°Eye relief,mm52mm F1.0E-Zoom,x2x / 4xDiopter , D -4 to +2Distance of the human detection, m1800/1400Distance of the human recognition, m750/600Distance of the human identification, m460/350PaletteWhite hot/black hot/ multiple color modesEnvironmental rating Waterproof / dustproofStart up time<5 secOperating temperature, ºC-40ºC to +50ºCStorage temperature, ºC-45ºC to +85ºCBattery type4 x CR123A battery typeBattery life, hour8Low battery indicatorYesDimension, mm300*55*60Weight, g1300 Packaging & Shipping 75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight

 will be packed with a strong safety box which has soft sponge inside to ensure you receive goods without any damage.

Package:  White strong box or black safety box.

Size:   44x34x20cm

Gross weight: 6kg

Shipping by EMS , DHL, Fedex, TNT as your requirement.



  Company Profile

CZVZ technology researches, designs, develops, manufactures Long distance 75mm Infrared Thermal Imaging Hunting Military Night Vision Weapon Spotting Monocular Scope thermal Sight Technologies that enhance perception and awareness. we bring innovative sensing solutions into daily life through thermal imaging systems, visible-light imaging systems.
