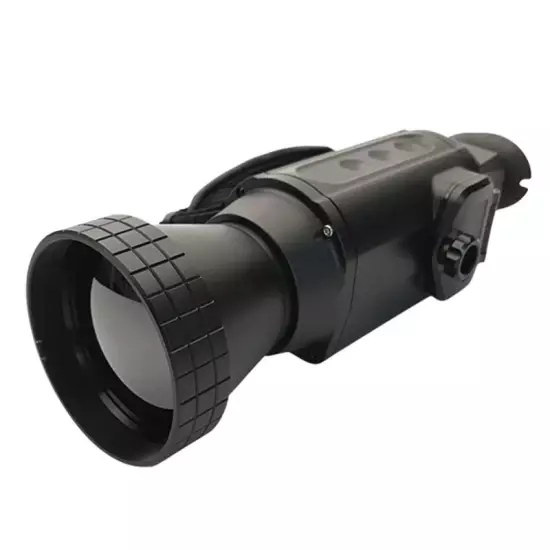

70mm Lens Multifunctional Handheld Long Distance Infrared Thermal Imaging Military Monocular Night Vision

Model NO. DA-M670 Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Sensor Uncooled Resolution 640*480px Wavelength Response Range 8-14um Frame Rate 50Hz Focal Length Thermal 70mm Polarity White/ Black/Color Waterproof Ipx4 Micro Display 800*600 OLED Binocular Start Time Less Than 5s E-Zoom 2X.4X Real Time Video Output Yes Take Picture Yes Record Video Yes WiFi Yes Standby Yes Transport Package Military Safety Box Specification DA-M670 Trademark CZVZ Origin Shaanxi Production Capacity 1000PCS/Month

Product Description

70mm lens Multifunctional Handheld long-distance infrared thermal imaging military monocular night vision is equipped with high class advanced uncooled FPA thermal detector 640 * 480px and OLED display, it will give you more stable and better image quality. In addition, DA-M670 is an easy one-touch operation, it brings you unprecedented new experience. IP67's waterproof rating allows you to use it in the wild and harsh environment. DA-M670 absolutely is your best choice for outdoor sports, hunting or security.

    Product Description

We carefully designed our DA-670M 70mm lens Multifunctional Handheld long-distance infrared thermal imaging military monocular night vision with straightforward one-hand operation using only one button,it can assist your vision without adding complexity. In addition, the latest OLED display offers superior image quality.





  Product Parameters Main ParameterDetector typeUncooled microbolometerThermal sensor resolution640x480 px, 17μmSpectral range8~14μmFrame rate50HzNETD<60mK@300k(F#1.0)Micro dispaly0.6 inch 800×600 OLED Image ProcessingE-Zoom2×/4×Image adjustmentWhite hot/Black hot/ColourOptical ParameterFocal Length70mmFocusManual focusF#1.0 Foucs range5m~∞Field of View8.8°×6.6°(H×V)  WIFI                                                   YESStandby Function                              YESVideo Recording and StoragePhoto SnapYesVideo RecordingYesVideo storagebuilt-in 16Gb;Video outputAnalog :BNC  Digital:USB2.0Observation DistancePersons(Standing man)Detection:2000m        Recognition:800mVehicle(NATO Tank)Detection:3500m        Recognition:1300mPower ParameterPowerRechargeable lithium battery, 7.2V/2000mAHPower consumption<3.0W (@25ºC)Operating hoursContinuous working time: ≥4hours Environmental parametersSeal standardIP67Operating Temperature-30°C~+60°CStorage Temperature-40°C~+70°CHumidity5%~95%( Non-condensing)VibrationSweep frequency:5-200-5Hz,G-force:10gImpact10g/11ms Half sine wavePhysical parametersProduct Weight<930g (Including Battery)Dimension (mm)240×80×80mmMount AdaptorStandard 1/4' tripod mounting   Packaging & Shipping

70mm lens Multifunctional Handheld long-distance infrared thermal imaging military monocular night vision will be packed with strong safety box which has soft sponge inside to ensure you receive goods without any damage.

Package:  White strong box or black safey box.

Size:   44x34x20cm

Gross weight: 6kg

Shipping by EMS , DHL, Fedex, TNT as your requirement.



  Company Profile

CZVZ technology researches, designs, develops, manufactures Long distance military infrared night vision thermal imaging scope weapon sight Technologies that enhance perception and awareness. we bring innovative sensing solutions into daily life through thermal imaging systems, visible-light imaging systems.
