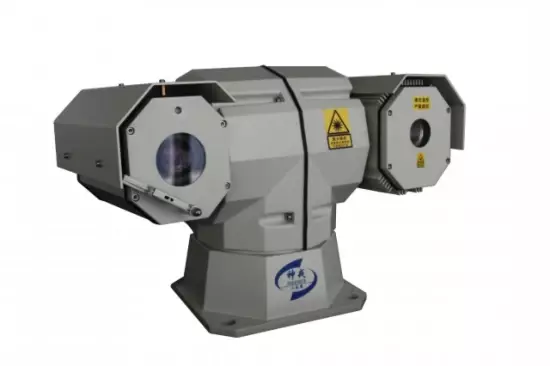

500m PTZ Laser Night Vision Camera

Model NO. SHR-HLV535 Certification CE, FCC, RoHS, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 500m Night Vision, 1000m Day Vision Name PTZ Laser Night Vision Camera Night Vision Distance 500m Day Vision Distance 1000m HD Visible Camera 2.1MP, 1/2.8" CMOS Visible Lens 4.5~135mm, 30X Optical Zoom Laser Illuminator 5W, 810nm Pan/Tilt Angle 360 Degree Continuous, -90~+90 Degree Pan/Tilt Speed Pan 80 Degree/S, Tilt 60 Degree/S Protection Class IP66 Dimension 240*374*243mm Trademark CZVZ Origin China Production Capacity 500 PCS/Month

Packaging & Delivery

Package Size 51.00cm * 55.00cm * 38.00cm Package Gross Weight 14.000kg

Product Description

SHR-HLV Series Short Range HD Laser Night Vision Camera Features: 1.Using near-infrared source light,hidden,and not easy to be found 2.Can be used in 0Lux total darkness 3.Low illumination,day&night camera,realize day and night surveillance continuous 4.Auto white balance, auto gain control, auto exposure control 5.High performance video processing chip,H.264 video code, can provide millions of HD image 6.Supports dual- video stream, compatible with various network environment 7.Support ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform 8.Capture and Record, Support Web video browsing,provide access to NVR platform 9.Adopt high performance power supply solution,low power consumption, also suitable for solar power 10.Professional designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain Specification: ModelSHR-HLV311SHR-HLV420SHR-HLV535DetectDistanceNight300m400m500mDay600m600m1000mHD CameraSensor Type1/2" Progressive Scan CMOSPixel2.1MPLens Focalf=4.7~94mm,20x optical zoomf=4.5~135mm,30x optical zoomIrisF1.6~3.5F1.6~4.4Lux0.05Lux(color),0.01Lux(white&black)Image ControlSupport AGC,AWB,BLC;Support Day&night conversion by manual and autoVideo CodeVideo FormatH.264Video Resolution1920x1080Code and Frame rateCode rate:64Kbps~4Mbps,Frame rate:1~25frame/s(50Hz),1~30frame/s(60Hz)Laser IlluminatorPower5wWave length810nmLighting Angle 2°~50°sychronous zoom1°~20°sychronous zoom0.7°~50°sychronous zoomBrightness BalanceLCMMMCICPan tiltAngle RangePan:360°continuous, Tilt: -90°~+90°Speed RangePan: 0°~80°/s, Tilt: 0°~60°/s,Preset Number256Cruising path6InterfaceVoltage 1*AC24VEthernet1*10Base-T/100Base-TX,RJ45EnvironmentTemp.Working Temp.-25ºC~+55ºC(-40ºC~+55ºC optional),Storage Temp.-40ºC~+65ºCProtection IP66Anti-Shock Anti-vibration:10~55Hz,2m/s2,0.75mm;Anti-impact:150m/s2,11msAnti-salt fog48 hours spraying continuously under PH 6.5~7.2Power SupplyVoltage InputAC24V±5%/3AConsumption≤60WPhysicsWeight8kgDimension240mm*374mm*243mm                      ISO9001                                                     CE                                                   FCC Contact Person: Mary
