48 Core Dome Fiber Optic Splice Closure, Fiber Closure|Czvz

Model NO. G9D01-48 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material ABS Capacity 48 Core Closure Type Vertical/Dome OEM Yes No. of Cable 1 in 3 out Samll Order Accepted Sample Free of Cost Delivery Time as Per The Order Packing Customized Transport Package Neutral Trademark CZVZ Origin China HS Code 85367000

Product Description



Product Description

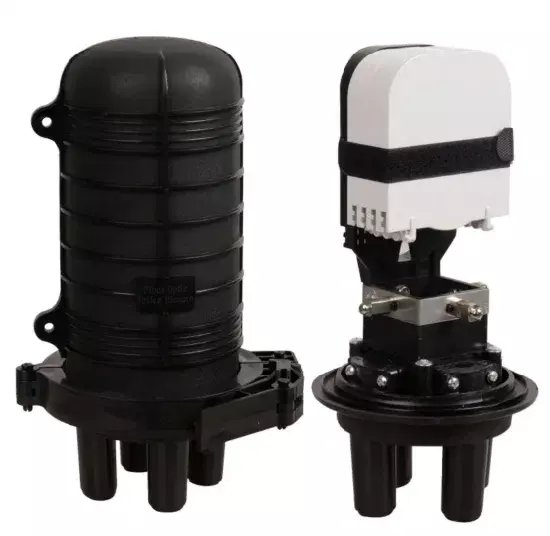

Fiber optic closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. It can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment. It can be used in aerial and wall mounting application. It is small volume, big capacity and convenient maintenance.

Features

|   Suitable for Aerial,Pole,Man-hole,Underground mounting |   Material: High density plastic |   Closure type: single-ended |   Max. Capacity: 48 Core |   Cable ports: 1 in 3 out port |   Suitable for Cable:Ribbon & round cable |   Sealing way: Heat shrinkable sealing

  Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters   Closure typeVertical/DomeCapacityUp to 48 coresMaterialPPNo. of cable In /Out1 in 3 outMax. cable in Diameterφ21mm-34mm(Oval port) Capacity of each tray24FMax. number of Trays2Dimension(mm)Φ300×120mmColorBlack
