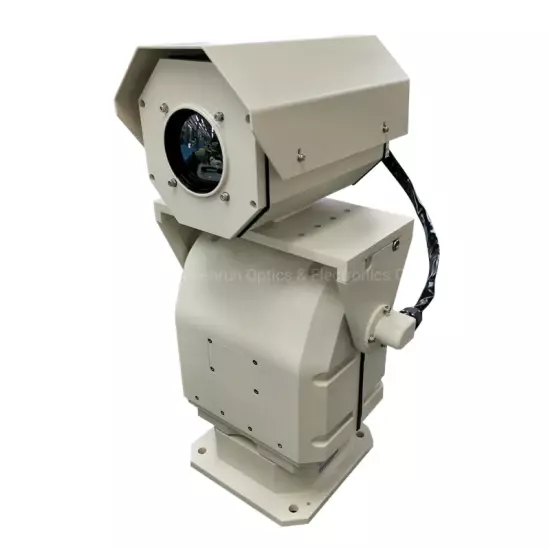

12 Years Manufacturer Thermal Imaging CCTV Camera (TIR30)

Model NO. SHR-TIR30 Sensor Vox HDMI Format PAL/NTSC Video Output Horizontal Resolution 324X 256 Resolution Kind Auto / Manual Certification CE, FCC Feature Waterproof / Weatherproof Effective Distance 720m Human Detection Sensor Size Same as Lens Size Remote Control With Remote Control Detection Distance 720m for Human, 1980m for Vehicle Recognition Distance 180m for Human, 490m for Vehicle Focal Length 30mm Detector 324X256 Vox Detector E Zoom 2X and 4X Image Display Hot Black, Hot White and 10 Kinds of Pseudo Colors F Value F 1.0 Protection Degree IP66 Power Supply DC12V Warranty One Year Transport Package Carton / Wooden Case Specification 2kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Features   - 324x256 resolution, uncooled Vox detector.  -  30mm lens  -  Hot black, hot white and 10 kinds of pseudo colors  -  2x and 4x E-zoom -  Optional IP control -  IP66   2 Specifications    DistanceTargetHuman (1.8m×0.5m)Vehicle (2.3m×2.3m)Detection distance720m1980mRecognition distance180m490mIdentification distance90m240mThermal lensFocal length30mmFOV15.2°×12.2°IFOV0.83mradDetectorDetectorUncooled vox Resolution324×256Spectrum Range8-14μmNETD≤50mK@F1.0, 300KFrame rate9HzNon- uniformity CorrectionAuto/manualImage ProcessAGC, DDE, pseudo colorsVideo outputNTSC / PALPantiltAnglepan:360º tilt:+60° to -60°SpeedPan 0.1°-8°/S;tilt 0.1°-6°/S;Presets200Communication InterfacePelco-D,Pelco-P optionalBaud Rate2400/4800/9600/19200 bps optionalInstallationTop loadLoad capacity10kgDimensions 385mm×212.5mm×260mm(L×W×H)InterfacePowerDC24VOtherRS485,BNCEnvironmentWorking temperature-25ºC to +55ºCStorage temperature-40ºC to +65ºCProtection degreeIP66Anti-vibration10~55Hz,0.75mmAnti-impact150m/s2,11msSaltfrog proofunder PH6.5~7.2, continuous spraying fog for 48 hoursPowerPower supplyDC24V±10%,50HzPower consumption≤50WPhysical   featuresWeight7.25kgInstallaitonOutdoor base install 3 Product Photo  4 Company Introduction

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world.

CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks.

CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
