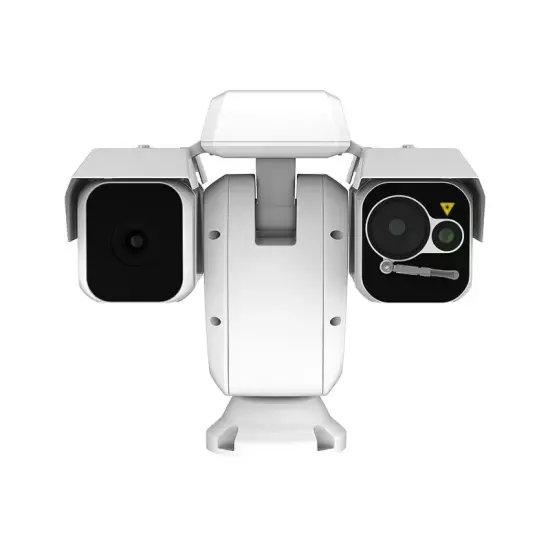

10km Ultra Long Range Thermal Surveillance PTZ Camera with HD Day Night Camera

Model NO. DA-YT Sensor CMOS HDMI Format Customization Horizontal Resolution Customization Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance Customization Sensor Size Customization Remote Control Customization IR Distance up to 800 M IR Intensity and Angle Automatically Adjusted Temperature Measurement Support 3 Temperature Measurement Rule Types Transport Package Box Specification Customization Trademark DA Origin China Production Capacity 5000 Piece/Month

Packaging & Delivery

Package Size 15.00cm * 15.00cm * 16.00cm Package Gross Weight 2.000kg

Product Description

Product Description

Application

Product Parameters Thermal ImagingSensor typeVanadium Oxide Uncooled Detector   Resolution640 × 512   Cell size             17 μm    Response band8~14 μm   NETD (Noise Equivalent Temperature Difference)<50 mk(@25 °C,F#=1.0)   Reference sizePeople: 1.8 m × 0.5 m; vehicle: 1.4 m × 4.0 m; Fire source: 2 m × 2 m; boat: 10 m × 5 m   Thermal imaging lens focal length100 mm   MARD (spatial resolution)0.17   Maximum aperture value1.0   Detection distance (vehicle)9020 m   Detection distance (person)2941 m   Recognition distance (vehicle)2255 m   Recognition distance (person)735 m   Recognition distance (vehicle)1127 m   Recognition distance (person)368 m   Field of view6.23° × 4.98°   Personnel perimeter alarm effective distance1000 m
