10km Long Range Laser Night Vision Camera with Themral Imaging Camera

Model NO. SHR-WHLV4020HTIR210R-LRF10KM Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC, PTZ Effective Distance 10km Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 5km Daytime Vision Distance 10km Day Camera Resolution 1080P Day Camera Lens 16.7~1000mm Thermal Camera Resolution 640*512 Thermal Lens 20-200mm, 10× Optical Zoom Laser Range Finder 10km GPS Support Digital Compass Support Pantilt 50kg Load Capacity Interface RJ45 Ingress Protection IP66 Warranty One Maintainance Whole Life Transport Package Carton / Wooden Case Specification 50kg Trademark SHEENRUN Origin China Production Capacity 100 Units / Month

Product Description

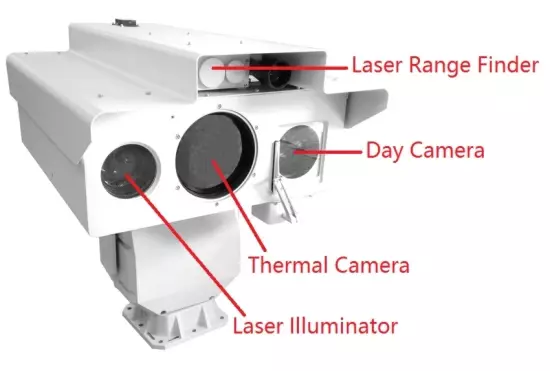

 1. Product Features* Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large* Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance* Infrared detector with high temp sensitivity, with min temp resolution of 50mK* Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black* Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring*  MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition* Supporting fog penetration, backlight compensation, multistage wide dynamic* Optional auto focusing function, realizing multiple focusing mode and triggering mode* Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency* 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability* External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment* Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

2. Technical Specifications ModelSHR-WHLV4020HTIR210R-LRF10kmMonitoring distanceDay cameraDay vision 8~10km, night vision 4~5km (object: human)Thermal imaging cameraObjectHuman(1.8m×0.5m)Vehicle (2.3m×2.3m)Detection5600m16000mRecognition1400m4000mIdentification700m2000mVisible light camera lensFocal length16.7~1000mmFOV0.45°~25°Auto irisDC drive2× extenderSupportingFog penetratingSupportingAuto focusSupportingWiperSupportingVisible light cameraSensor1/1.8''Progressive Scan CMOSColor modeICR double filter, day & night switchShutter speedAuto and manual adjustmentCamera controlAuto gain control, auto white balance, supporting manual and auto day&night mode switchFog penetratingOpen /Close is optionalWDROpen/Close is optionalBLCOpen/Close is optional; range is optionalROISupporting Open/Close, range is optionalBack focus fine adjustmentSupporting, can remotely debugNoise reduction3D digital noise reductionCode formatH.264/MJPEG/MPEG4Video resolution1080p, supporting three streamVideo code rate32Kbps~16MbpsVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)Title overlayLogo, date, timeImage adjustmentBrightness, contrast, saturation, sharpness etc.Network protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPFeaturesSupporting heartbeat, video cover, code protectionLaser lensFocal length60× zoom laser telephoto lensIlluminating angle0.3°~18° continuous changeCoatingMulti-layer near-infrared anti-reflection coatingPresetPrecise potentiometer voltage feedbackZoom mode3CAM cam-gearing mode, high coaxialityOptical axis adjustmentExternal MMA fine adjustment mechanismLaser illuminatorPower15WWave length810nmLaser power switchAuto/Manual controlLaser uniformityMCIC light uniformity technologySealSeal with nitrogen insideHear dissipationArray air-cooled conductionInfrared lensFocal length20~200mmFOV3.1°×2.5°~15.5 °×12.4°Spatial resolution0.09~0.42mradLens controlElectric zoom, electric focus, auto focusDetectorDetector typeUncooled microbolometer focal plane array (VOx)Effectivepixel640×512Spectrum range8~14μmNETD≤[email protected],300KFrame frequency25HzNUCAuto/ manual/ background correctionImage processDDE, pseudo colorVideo outputPALLaser range finderMax range10km (In the mode of mid-latitudes atmosphere,T=20ºC, relative humidity 70%,1 standard atmospheric pressure, horizontal visibility>23.5km)Min range100mPrecision±3mRepetition frequency0.2HzGPSAntennaBuilt insensibility-165 dBmPrecision5 mLocation speedUnder open sky conditions; Hot start   1 s; Warm start   35 s;Cold start   38 s: recapture   <1 sHeight< 18,000 mSpeed< 515 m/sAcceleration< 4 gPantiltLoad50kg(top mounted)Pan angle360°, continuous rotationTilt angle-45°~+45°Pan speed0.01°~ 12°/sTilt speed0.01°~8°/sPreset255Preset precision±0.1°Auto cruise8 path, 10 presets each pathAuto line scan1 pathCommunication protocolPelco-D,Pelco-P optionalBit rate2400/4800/9600/19200 bps optionalSize326mm×206mm×380mm(L×W×H)Anti-lightningPower supply 4000V, video signal 2000VOverall unit interfacePower interfaceDC30VNetwork interface1×10Base-T/100Base-TX RJ45Other interfacesRS422,BNCEnvironment indicatorsWorking temp.-25ºC~+55ºCStorage temp.-40ºC~+65ºCProtectionIP66Anti-salt fogComply with GB/T2423.17-2008Power supplyOverall unit power supplyDC30V, equipped with AC220V~DC30V/10A wide range water-proof power adapterOverall unit power consumption≤180WPhysical featuresWeight≤58kgInstallationOutdoor pedestal mounted   3. Company Intruduction

CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed laser night vision camera and uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached standard level.

4. Our Service

(1)  We generally offer one year warranty.  Extended warranty is also available.

(2)  We accept OEM.

(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting via Internet and Phone any time.

(4) Door-to-door service if necessary.

(5) Outside color of the produt  can be customized. 5.  FAQ

(1)  Is your company a manufacturer?      Yes. CZVZ is a manufacturer of  thermal camera and laser camera since 2004.

(2) What is the price?     Please kindly tell us your required specificatons or application details such as monitoring/ detection distance, then we will offer suitable      cameras with quotation.(3) What is your warranty?      We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized product?       Yes.

(5) Does your company accept OEM.      Yes.
