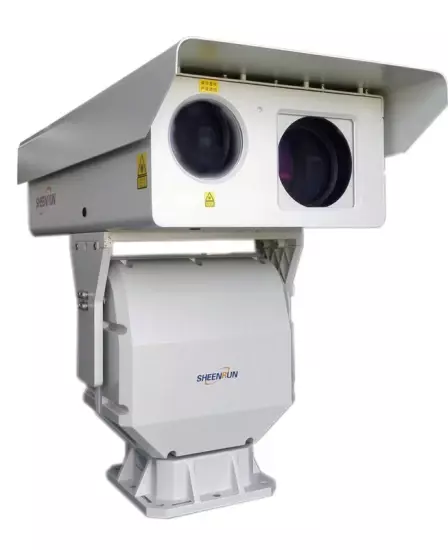

10km Infrared Long Range PTZ Laser Night Vision Camera

Model NO. SHR-HLV4020 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof Effective Distance 10km at Daytime, 4km at Night Sensor Size 1/1.8′′ Remote Control With Remote Control Maximum Night Vision Distance 4km Maximum Daytime Vision Distance 10km Pixel 2.1 Mega Pixel Focal Length 20-1000mm International Protection IP66 Weight 50kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1. Product Features •  Adopt laser illuminating system, long lighting distance with large scope, uneasy to be discovered; •  Day & Night low illumination megapixels color to black camera, realize continuous monitoring day and night; •  Auto exposal control, AWB, AGC; •  High-efficiency video processing chips, H.264 code, HD images of millions resolution; •  Dual-stream function to meet the different network broadband; Rich network protocol, good adaptability; •  Mobile surveillance and alarm linkage, intelligence video monitoring; •  Built-in Web Server, convenient to control; •  Shifting pan-tilt, realize all directions no blind spot monitoring and high accurate orientation; •  Smart shell with professional design, light, firm, anti-corrosion, waterproof and acid rain proof. 2. Technical Specifications   Monitoring DistanceNight vision4kmmDay vision9~10kmLensFocal length16.7~1000mm  60XIrisF3.5~16Auto irisDC driveFOV0.45°~25°Fog penetratingsupportFocus controlelectronicFocusAuto/manualPresetSupport lens zoom and focus presetinterfaceC/CSCameraSensor1/1.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optionalInterested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Character addingCamera number, time, dateImage adjustmentLight, contrast, saturation, sharpInternet protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPfeaturesSupport heartbeat, video cover, password protected Laser lensFocal lenth100mmHD focus laser lenscoatingMultilayer near-infrared coatingPresetSupport precise potentiometer voltage feedbackFocus way3CAMAxis adjustingOutside MMALaser illuminatorpower15WWavelength810nmLighting angle0.3°~20° continuous zoomLaser switchAuto/manualMQMMMQMM Micro lens waveguide fiber mixed modeEncapsulateSealed NitrogenHeat emissionArray Air-cooled heat emission, inside fanShieldMaterialHigh precision aluminum alloy shellStructureIntegration double windowSurface coatingPTA Tri-proof Coating, Anti-saltfogCoating paintingPTA coating ,  anti sea corrosionPantiltBurden weight50kg(top load)Horizontal angleHorizontal 0°~360°Vertical angle-45°~+45°Pan speed0.01°~20°/sTilt speed0.01°~12°/sPresets200Presets precision±0.1°Auto cruise8 paths, each path can set up 10 presetsAuxiliary switch2Thunder proof2000VSize320mm×206mm×380mm(L×W×H)InterfacePowerAC24VInternet1×10Base-T/100Base-TX,RJ45Environmental indicatorsOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proof PH6.5~7.2, Continuously spraying 48 hoursPower supplyWhole device power supplyAttached 220VAC~30VAC/6A water proof power supplyWhole device power consumption≤150WPhysical featuresWhole device weight≤45kgInstallationOutdoor base install  3. Company Intruduction

CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is one of the largest manufacturer of long range thermal imaging camera and laser night vision camera, as well as a supporting construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation,  developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging  technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

4. Our Service

(1)  We generally offer one year warranty.  Extended warranty is also available.

(2)  We accept OEM.

(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting via Internet and Phone any time.

(4) Door-to-door service if necessary.

(5) Outside color of the produt  can be customized. 5.  FAQ

(1)  Is your company a manufacturer?      Yes. CZVZ is a manufacturer of  thermal camera and laser camera since 2004.

(2) What is the price?     Please kindly tell us your required specificatons or application details such as monitoring/ detection distance, then we will offer suitable      cameras with quotation.(3) What is your warranty?      We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized product?       Yes.

(5) Does your company accept OEM.      Yes.
