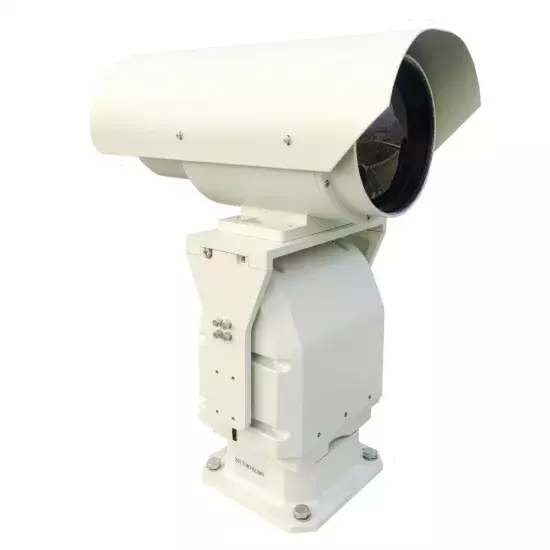

100mm Low Price Outdoor Marine PTZ Thermal Camera with IP66

Model NO. SHR-TIR185 Sensor Vox HDMI Format PAL Video Output Horizontal Resolution 384X 288 Resolution Kind Auto / Manual Certification CE, FCC, RoHS Feature Waterproof / Weatherproof Effective Distance ≧30m Sensor Size Same as Lens Sizse Remote Control With Remote Control Detection Distance 0-11880m Recognition Distance 0-2970m Identification Distance 0-1440m Focal Length 36-180m IP IP66 Transport Package Aluminum Alloy Box Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

Low Price Outdoor Marine PTZ Thermal Camera  Main features  1. High resolution uncooled microbolometer infrared focal plane arrays, vox 2. 25µm or 17 µm pixel, image quality fine, observe small target more clearly, further detection distance 3. High sensitivity, NETD can reach 50mk and frame at 25Hz 4. Word originate 30~150mm continuous zooming,can search in a wide range as well as identify target far, not lost target 5. Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color 6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity 7. RS 485 interface control, analog video signal output 8. Simple operation, easy to use and maintain 9. Precision casting aluminium alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime  Technical indicators   Monitoring distance Object People(1.8m×0.5m) Vehicle(2.3m×2.3m) Detect 4320m 11880m Recognize 1080m 2970m Identification 540m 1440m Detector Detector type Uncooled FPA detector(vox) Resolution 384×288, pixel 25µm (640×512 optional) Spectrum 8~14μm NETD ≤50mK Frame 25Hz FFC Auto/Manual/scene Image process DDE, pseudo color Video output PAL Thermal lens Focal length 36~180mm, 5x optical zoom FOV 2.5°×2.0°~12.7°×10.2° F 1.0 ~ 1.2 Lens control E zoom/focus(auto focus is optional) Pan-tilt Rotating angle Pan:0°~ 360°continuous; Tilt:+30°~ -45° Rotating speed Pan:0.1°~9°/S; Tilt:0.1~4°/S Presets 255 Agreement Pelco-D, Pelco-P Optional Baud rate 2400/4800/9600/19200 bps Optional Interface RS485 Power supply AC24V±10%, 50Hz Power consumption ≤30W Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC Load capacity 20kg Weight 10Kg Size 265mm×180mm×315mm(L×W×H) Interface Power supply interface DC12V Other interface RS485, BNC video output Environmental indicators Working temperature -25ºC~+55ºC(-40ºC~+55ºC customized) Storage temperature -40ºC~+65ºC International protection IP66 Anti-vibration GB/T 4857.10-2005 Anti-impact GB/T 15412-94 Free drop test method Anti-thunder 2000V Power Power supply DC12V(equip AC220V/DC12V power adapter) Power consumption ≤8W Physical features Weight ≤7Kg Size 440mm×213mm×217mm(L×W×H, contain sunshield cover) Installation Outdoor base installation   Thermal Camera Series Application    CZVZ products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project, frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.   Package & Delivery

>>> Package

Standard Wooden or Carton cases

>>> Delivery

7-20 days after order confirned, detail delivery should be decided according to  production season and order quantity. Our Services 1. We generally offer one year warranty. Extended warranty is also available.  2. Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. 3. OEM available. 4. Customized product available.    Certification Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Exhibition photos
